Grafana

Version

Latest

Install

kubectl create ns monitoring
kubectl apply -k .

Dashboards

Pre-configured dashboards are in config/dashboards/dashboard.yaml

RabbitMQ: config/dashboards/rabbitmq.json
MySQL: config/dashboards/mysql-test.json

Data sources

Configured data sources are in config/datasources/datasource.yaml

Prometheus

Apply Prometheus with prometheus-operator following prometheus-operator
Data source is already set to http://prometheus.monitoring.svc:9090 on Grafana.

MySQL

Create mysql in database namespace

kubectl create ns database
kubectl apply -k datasources/mysql

The following data in stat table is initialized in entrypoint of MySQL.

mysql> select * from stat;
+-------+---------------------+---------------------+
| num   | started_at          | updated_at          |
+-------+---------------------+---------------------+
| 10000 | 2021-09-01 00:00:00 | 2021-09-01 00:00:20 |
| 10000 | 2021-09-01 00:00:20 | 2021-09-01 00:00:30 |
|  5000 | 2021-09-02 00:00:00 | 2021-09-02 00:00:10 |
|   100 | 2021-09-02 00:00:00 | 2021-09-02 00:00:20 |
+-------+---------------------+---------------------+
4 rows in set (0.00 sec)

Data source for MySQL is configured:
- host: mysql.default.svc.cluster.local
- user: grafana
- password: password

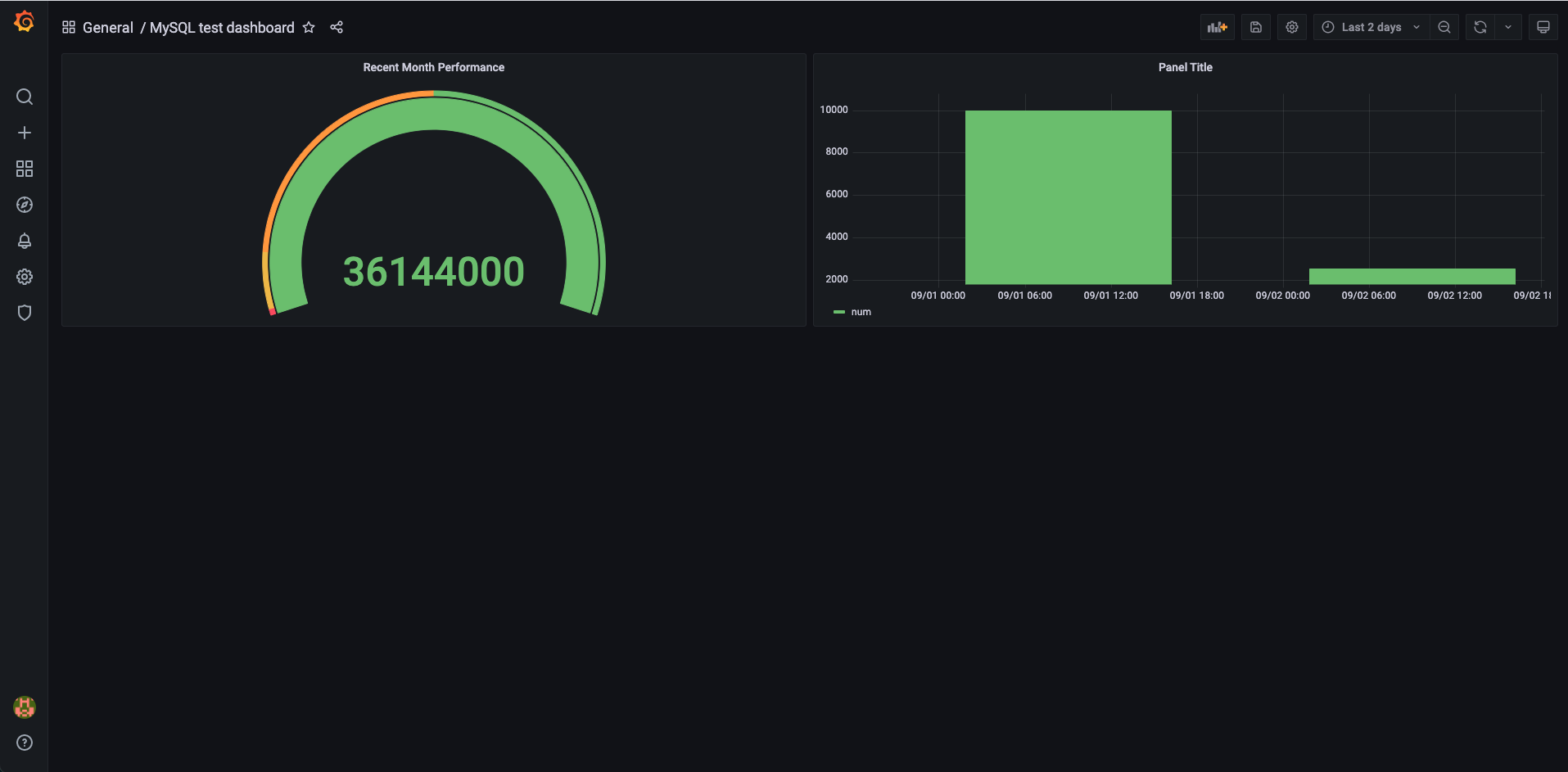

Dashboard with MySQL data source.

SELECT sum(num) / sum(TIME_TO_SEC(TIMEDIFF(updated_at, started_at))) * 86400 AS "num" FROM stat
WHERE started_at > NOW() - INTERVAL 1 MONTH

CleanUp

Delete MySQL for data source:

kubectl delete -k datasources/mysql
kubectl delete ns database

Delete Grafana:

kubectl delete -k .
kubectl delete ns monitoring
