Elastic Cloud on Kubernetes

The fresh-install example uses ECK 3.5.0 with Elasticsearch and Kibana 9.5.4. Run these commands from the repository root:

kubectl apply --server-side -k contents/eck/operator
kubectl -n elastic-system rollout status statefulset/elastic-operator --timeout=300s
kubectl create namespace eck
kubectl apply -f contents/eck/elasticsearch.yaml
kubectl apply -f contents/eck/kibana.yaml
kubectl -n eck wait --for=jsonpath='{.status.availableNodes}'=1 elasticsearch/quickstart --timeout=600s
kubectl -n eck wait --for=jsonpath='{.status.availableNodes}'=1 kibana/quickstart --timeout=600s

Elasticsearch uses node.roles in place of the removed node.master, node.data and node.ingest settings. Kibana has a 1 GiB memory limit. Allow roughly 4 GiB of free cluster memory for the operator and both applications.

Access Elasticsearch using its generated training credentials:

PASSWORD=$(kubectl -n eck get secret quickstart-es-elastic-user -o go-template='{{.data.elastic | base64decode}}')
kubectl -n eck port-forward service/quickstart-es-http 9200
# In another terminal with PASSWORD set:
curl -u "elastic:$PASSWORD" -k https://localhost:9200

For Kibana, forward service/quickstart-kb-http on port 5601 and log in at https://localhost:5601 with the same elastic credentials.

bash scripts/e2e/run.sh eck
# For slow first-time image downloads:
ECK_WAIT_TIMEOUT=900s bash scripts/e2e/run.sh eck

E2E verifies both workloads, indexes and reads a document through the Elasticsearch Service, and checks Kibana's /api/status. The test uses the generated HTTP CA certificates to verify TLS. The local port-forward example above uses -k for convenience with the generated certificate.

This updates a fresh training installation; existing 7.8.1 data requires Elastic's supported upgrade procedure. The historical Helm examples below remain separate from this ECK sample.

Historical Helm examples (7.8.1, not covered by E2E)

Elasticsearch

https://github.com/elastic/helm-charts/tree/master/elasticsearch

helm repo add elastic https://helm.elastic.co

Install with customized values

helm show values elastic/elasticsearch > helm/es-config.yaml
helm install -n eck elasticsearch elastic/elasticsearch -f helm/es-config.yaml

Check connection

kubectl -n kafka-strimzi-18 exec -it $(kubectl get pod -n kafka-strimzi-18 | grep kafka-connect-sink | awk '{print $1}' | tail -1) -- curl -k "http://elasticsearch-master-headless.eck:9200"
{
  "name" : "elasticsearch-master-0",
  "cluster_name" : "elasticsearch",
  "cluster_uuid" : "2Ou_PUP4TCSUoMNHD_rnkA",
  "version" : {
    "number" : "7.8.1",
    "build_flavor" : "default",
    "build_type" : "docker",
    "build_hash" : "b5ca9c58fb664ca8bf9e4057fc229b3396bf3a89",
    "build_date" : "2020-07-21T16:40:44.668009Z",
    "build_snapshot" : false,
    "lucene_version" : "8.5.1",
    "minimum_wire_compatibility_version" : "6.8.0",
    "minimum_index_compatibility_version" : "6.0.0-beta1"
  },
  "tagline" : "You Know, for Search"
}

Upgrade

helm upgrade elasticsearch elastic/elasticsearch -n eck -f helm/es-config.yaml

Kibana

https://github.com/elastic/helm-charts/tree/master/kibana

helm install kibana elastic/kibana

helm show values elastic/kibana > helm/kb-config.yaml
helm install -n eck kibana elastic/kibana -f helm/kb-config.yaml

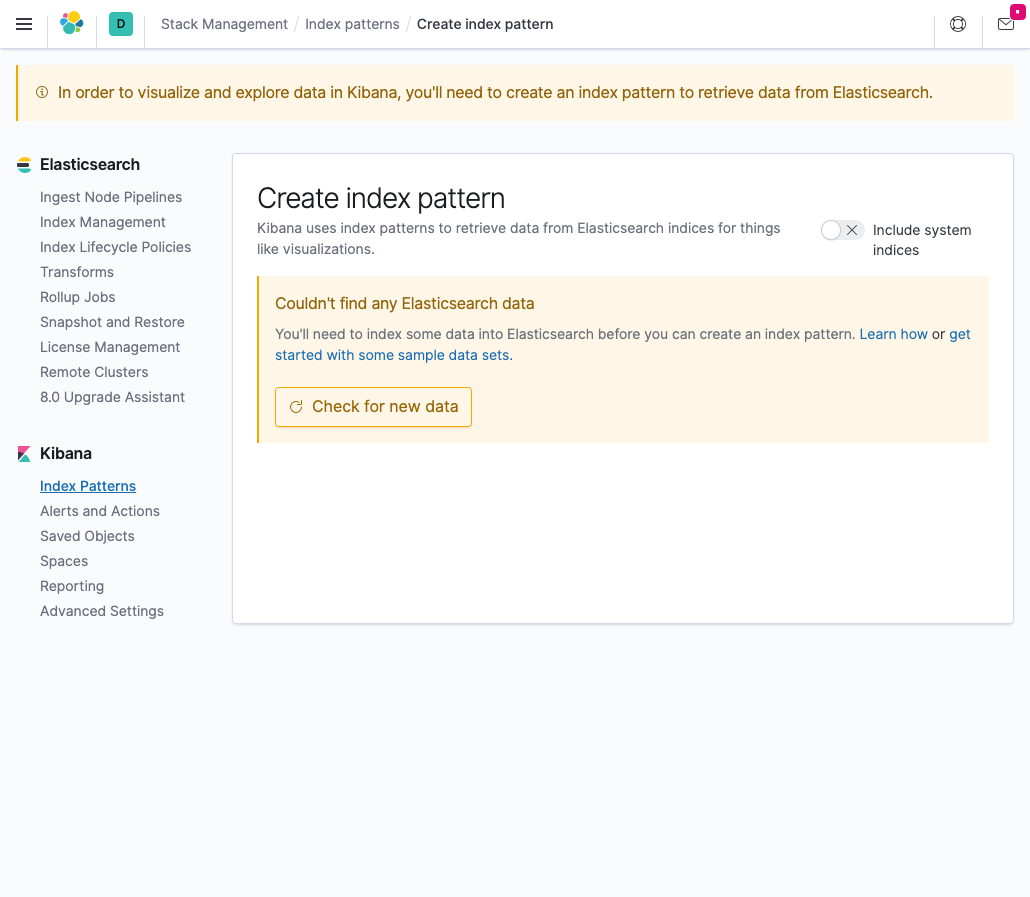

kubectl -n eck port-forward service/kibana-kibana 5601

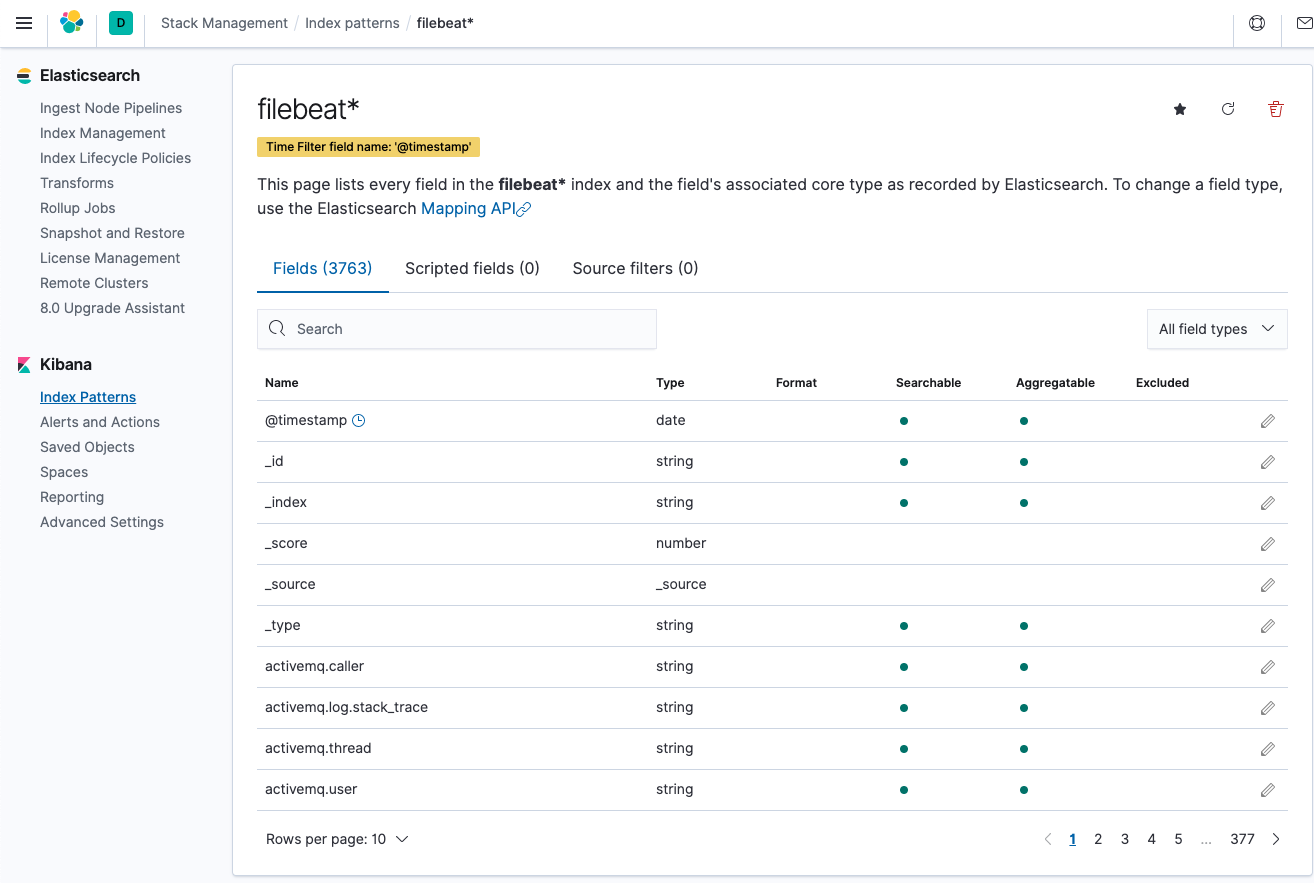

Filebeat

https://hub.helm.sh/charts/elastic/filebeat

helm repo add elastic https://helm.elastic.co
helm show values elastic/filebeat --version 7.8.1 > helm/filebeat-config.yaml
helm install -n eck filebeat elastic/filebeat --version 7.8.1 -f helm/filebeat-config.yaml
