1. Overview

An Istio service mesh is logically split into a data plane and a control plane.

• The data plane is composed of a set of intelligent proxies (Envoy) deployed as sidecars. These proxies mediate and control all network communication between microservices. They also collect and report telemetry on all mesh traffic.
• The control plane manages and configures the proxies to route traffic.

A service mesh is a dedicated infrastructure layer that you can add to your applications. It allows you to transparently add capabilities like observability, traffic management, and security, without adding them to your own code. The term “service mesh” describes both the type of software you use to implement this pattern, and the security or network domain that is created when you use that software.

Istio uses Envoy, AN OPEN SOURCE EDGE AND SERVICE PROXY, DESIGNED FOR CLOUD-NATIVE APPLICATIONS, proxy as its data plane.

2. Summary

CRDs and their roles

1. VirtualService: along with destination rules, the key building blocks of Istio’s traffic routing functionality (e.g. routing to a specific version based on the request header, A/B testing, Canary release). hosts, http(match and route)

   example

   apiVersion: networking.istio.io/v1alpha3
   kind: VirtualService
   metadata:
     name: bookinfo
   spec:
     hosts:
       - bookinfo.com # can be ip address, DNS, kubernetes service short name
     http:
     - match:
       - uri:
           prefix: /reviews
       route:
       - destination:
           host: reviews
     - match:
       - uri:
           prefix: /ratings
       route:
       - destination:
           host: ratings


   example with weight (A/B testing and canary rollouts)

   spec:
     hosts:
     - reviews
     http:
     - route:
       - destination:
           host: reviews
           subset: v1
         weight: 75
       - destination:
           host: reviews
           subset: v2
         weight: 25


2. DestinationRule: use destination rules to configure what happens to traffic for that destination. Destination rules are applied after virtual service routing rules are evaluated. specify named service subsets (Ref Destination Rule)

   example

   apiVersion: networking.istio.io/v1alpha3
   kind: DestinationRule
   metadata:
     name: my-destination-rule
   spec:
     host: my-svc
     trafficPolicy:
       loadBalancer:
         simple: RANDOM
     subsets:
     - name: v1
       labels:
         version: v1
     - name: v2
       labels:
         version: v2
       trafficPolicy:
         loadBalancer:
           simple: ROUND_ROBIN
     - name: v3
       labels:
         version: v3


3. Gateway (Istio): manage inbound and outbound traffic for your mesh. Gateway configurations are applied to standalone Envoy proxies that are running at the edge of the mesh, rather than sidecar Envoy proxies running alongside your service workloads. Istio provides some preconfigured gateway proxy deployments (istio-ingressgateway and istio-egressgateway). You also need to bind the gateway to a virtual service.

   example

   apiVersion: networking.istio.io/v1alpha3
   kind: Gateway
   metadata:
     name: ext-host-gwy
   spec:
     selector:
       app: my-gateway-controller
     servers:
     - port:
         number: 443
         name: https
         protocol: HTTPS
       hosts:
       - ext-host.example.com
       tls:
         mode: SIMPLE
         credentialName: ext-host-cert


   specify routing

   apiVersion: networking.istio.io/v1alpha3
   kind: VirtualService
   metadata:
     name: virtual-svc
   spec:
     hosts:
     - ext-host.example.com
     gateways:
     - ext-host-gwy


4. ServiceEntry: Configuring service entries allows you to manage traffic for services running outside of the mesh. (ref: Service Entry)

5. Sidecar
6. Gateway (Kubernetes Gateway API): To overcome Ingress's shortcomings with a standard Kubernetes API (beta). You can consider migration of ingress traffic from Kubernetes Ignress or Gateway/VirtualService to the new Gateway API. (e.g. Istio Implementation of the Gateway API) Ref: Getting started with the Kubernetes Gateway API Configure with Gateway in gateway.networking.k8s.io/v1beta1 and HTTPRoute

3. Getting Started

3.1. Prepare Kubernetes Cluster

If you test on your local cluster, pleasee use docker-desktop, minikube, or kind.

1. kind: Istio Gateway might not work

   kind create cluster --config=../local-cluster/kind/cluster-with-port-mapping.yaml


2. minikube: Confirmed everything works

   minikube start


3. Docker Desktop

3.2. Install Istio

1. Install istioctl (you can skip this step if you already installed istioctl)

   ISTIO_VERSION=1.20.0
   curl -L https://istio.io/downloadIstio | ISTIO_VERSION=$ISTIO_VERSION sh -
   export PATH="$PATH:/$PWD/istio-${ISTIO_VERSION}/bin"


   Check istioctl version

   istioctl version
   no ready Istio pods in "istio-system"
   1.20.0


2. Install istio

   istioctl install --set profile=demo -y


   Result

   ✔ Istio core installed
   ✔ Istiod installed
   ✔ Ingress gateways installed
   ✔ Egress gateways installed
   ✔ Installation complete
   Making this installation the default for injection and validation.


   istio-egressgateway, istio-ingressgateway, and istiod are deployed in istio-system namespace:

   kubectl get po -n istio-system
   NAME                                   READY   STATUS    RESTARTS   AGE
   istio-egressgateway-6c4796c98-4q45f    1/1     Running   0          2m48s
   istio-ingressgateway-d94b4444b-v4tbq   1/1     Running   0          2m48s
   istiod-85669db8fd-5lz4s                1/1     Running   0          2m58s


3.3. Add istio-injection=enabled to the target Namespace

1. Add a namespace label istio-injection=enabled to default Namespace to instruct Istio to automatically inject Envoy sidecar proxies when you deploy your application later:

   kubectl label namespace default istio-injection=enabled


   Check labels

   kubectl get ns default --show-labels
   NAME      STATUS   AGE     LABELS
   default   Active   4m57s   istio-injection=enabled,kubernetes.io/metadata.name=default


3.4. Deploy the sample application

1. Deploy sample app

   kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-${ISTIO_VERSION%.*}/samples/bookinfo/platform/kube/bookinfo.yaml


   Deployed resources:

   1. Deployment: details-v1, ratings-v1, reviews-v1, reviews-v2, reviews-v3, productpage-v1
   2. Service: details, ratings, reviews, productpage
   3. ServiceAccount: bookinfo-details, bookinfo-ratings, bookinfo-reviews, bookinfo-productpage

   service/details created
   serviceaccount/bookinfo-details created
   deployment.apps/details-v1 created
   service/ratings created
   serviceaccount/bookinfo-ratings created
   deployment.apps/ratings-v1 created
   service/reviews created
   serviceaccount/bookinfo-reviews created
   deployment.apps/reviews-v1 created
   deployment.apps/reviews-v2 created
   deployment.apps/reviews-v3 created
   service/productpage created
   serviceaccount/bookinfo-productpage created
   deployment.apps/productpage-v1 created


   Envoy sider is added to all pods (2 containers are running in each pod).

   kubectl get po
   NAME                              READY   STATUS    RESTARTS   AGE
   details-v1-79f774bdb9-ctf75       2/2     Running   0          28s
   productpage-v1-6b746f74dc-7zgpg   2/2     Running   0          28s
   ratings-v1-b6994bb9-rw74b         2/2     Running   0          28s
   reviews-v1-545db77b95-t6gkl       2/2     Running   0          28s
   reviews-v2-7bf8c9648f-n9tmq       2/2     Running   0          28s
   reviews-v3-84779c7bbc-tmzlr       2/2     Running   0          28s


   If you deploy to another namespace without istio-injection=enabled label, Envoy sidecar container will not be injected.

2. Verify app is running.

   kubectl exec "$(kubectl get pod -l app=ratings -o jsonpath='{.items[0].metadata.name}')" -c ratings -- curl -sS productpage:9080/productpage | grep -o "<title>.*</title>"

   <title>Simple Bookstore App</title>


3.5. Open the app to outside traffic (Gateway & VirtualService)

1. Istio Gateway (Gateway and VirtualService (networking.istio.io/v1alpha3))

   kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-${ISTIO_VERSION%.*}/samples/bookinfo/networking/bookinfo-gateway.yaml


   yaml details

   apiVersion: networking.istio.io/v1alpha3
   kind: Gateway
   metadata:
     name: bookinfo-gateway
   spec:
     # The selector matches the ingress gateway pod labels.
     # If you installed Istio using Helm following the standard documentation, this would be "istio=ingress"
     selector:
       istio: ingressgateway # use istio default controller
     servers:
     - port:
         number: 80
         name: http
         protocol: HTTP
       hosts:
       - "*"
   ---
   apiVersion: networking.istio.io/v1alpha3
   kind: VirtualService
   metadata:
     name: bookinfo
   spec:
     hosts:
     - "*"
     gateways:
     - bookinfo-gateway
     http:
     - match:
       - uri:
           exact: /productpage
       - uri:
           prefix: /static
       - uri:
           exact: /login
       - uri:
           exact: /logout
       - uri:
           prefix: /api/v1/products
       route:
       - destination:
           host: productpage
           port:
             number: 9080


   Notes: If you deploy Gateway and VirtualService in different namespaces, you need to specify the gateway in VirtualService with namespace as a prefix.

   gateways:
   - gateway/bookinfo-gateway # <namespace of gateway>/<gateway name>


   Alternatively, kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-${ISTIO_VERSION%.*}/samples/bookinfo/gateway-api/bookinfo-gateway.yaml to install (Gateway and HTTPRoute in gateway.networking.k8s.io/v1beta1)

2. Check

   istioctl analyze
   ✔ No validation issues found when analyzing namespace: default.


3. Check ingress gateway

   kubectl get svc istio-ingressgateway -n istio-system
   NAME                   TYPE           CLUSTER-IP     EXTERNAL-IP   PORT(S)                                                                      AGE
   istio-ingressgateway   LoadBalancer   10.103.34.38   localhost     15021:31476/TCP,80:31411/TCP,443:32714/TCP,31400:30467/TCP,15443:30550/TCP   44m


   You might see EXTERNAL-IP is <pending>. You need to run minikube tunnel

4. Set ingress ip and ports:

   Most platforms:

   export INGRESS_HOST=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
   export INGRESS_PORT=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="http2")].port}')
   export SECURE_INGRESS_PORT=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="https")].port}')


   Docker Desktop or Kind:

   export INGRESS_HOST=127.0.0.1


   export GATEWAY_URL=$INGRESS_HOST:$INGRESS_PORT


   Check

   echo "$GATEWAY_URL"
   127.0.0.1:80

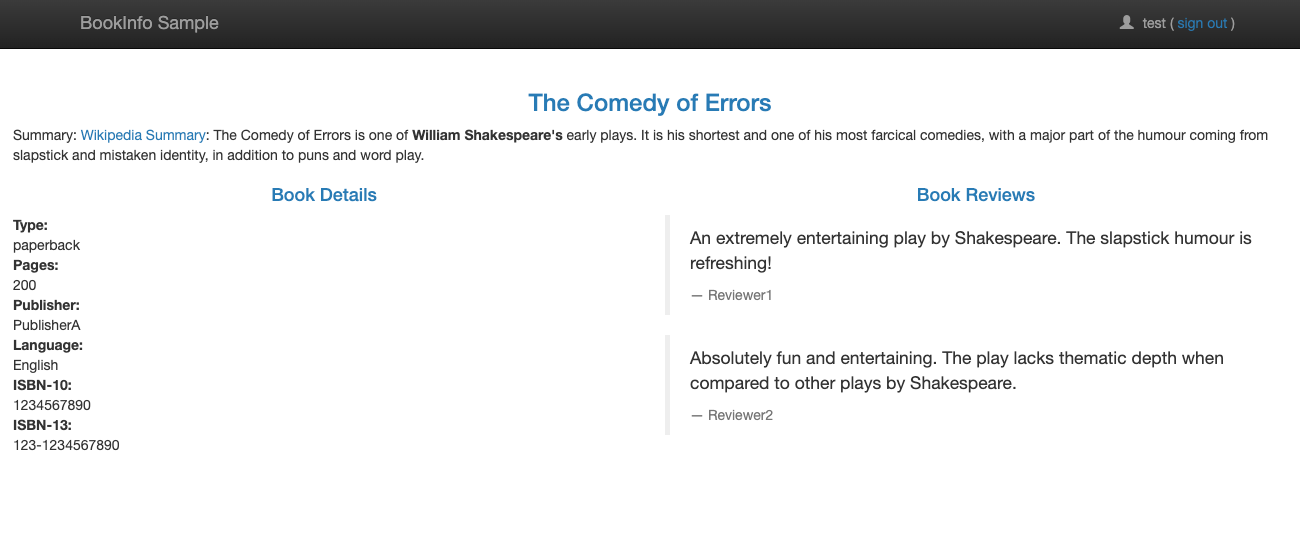

5. Open http://127.0.0.1:80/productpage on your browser:



   TODO: You might not be able to open it when EXTERNAL-IP is <pending> (this happens when using kind).

3.6. Define the service versions

Before you can use Istio to control the Bookinfo version routing, you need to define the available versions.

Create DestinationRule for each service productpage, reviews, ratings and details.

kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-${ISTIO_VERSION%.*}/samples/bookinfo/networking/destination-rule-all.yaml

apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: reviews
spec:
  host: reviews
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
  - name: v3
    labels:
      version: v3

3.7. Request Routing

Istio includes beta support for the Kubernetes Gateway API

3.7.1. (Optional) Install necessary CRDs (only for Gateway API not needed for Istio APIs)

kubectl get crd gateways.gateway.networking.k8s.io &> /dev/null || \
  { kubectl kustomize "github.com/kubernetes-sigs/gateway-api/config/crd?ref=v0.8.0-rc1" | kubectl apply -f -; }

The following custom resource definitions will be created:

1. GatewayClass
2. Gateway
3. HttpRoute
4. ReferenceGrant

For more details, please check https://github.com/kubernetes-sigs/gateway-api

3.7.2. Route to version 1 (Istio APIs)

kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-${ISTIO_VERSION%.*}/samples/bookinfo/networking/virtual-service-all-v1.yaml

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
  - reviews
  http:
  - route:
    - destination:
        host: reviews
        subset: v1

3.7.3. Route based on user identity (Istio APIs)

Istio also supports routing based on strongly authenticated JWT on ingress gateway, refer to the JWT claim based routing for more details.

kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-${ISTIO_VERSION%.*}/samples/bookinfo/networking/virtual-service-reviews-test-v2.yaml

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
    - reviews
  http:
  - match:
    - headers:
        end-user:
          exact: jason
    route:
    - destination:
        host: reviews
        subset: v2
  - route:
    - destination:
        host: reviews
        subset: v1

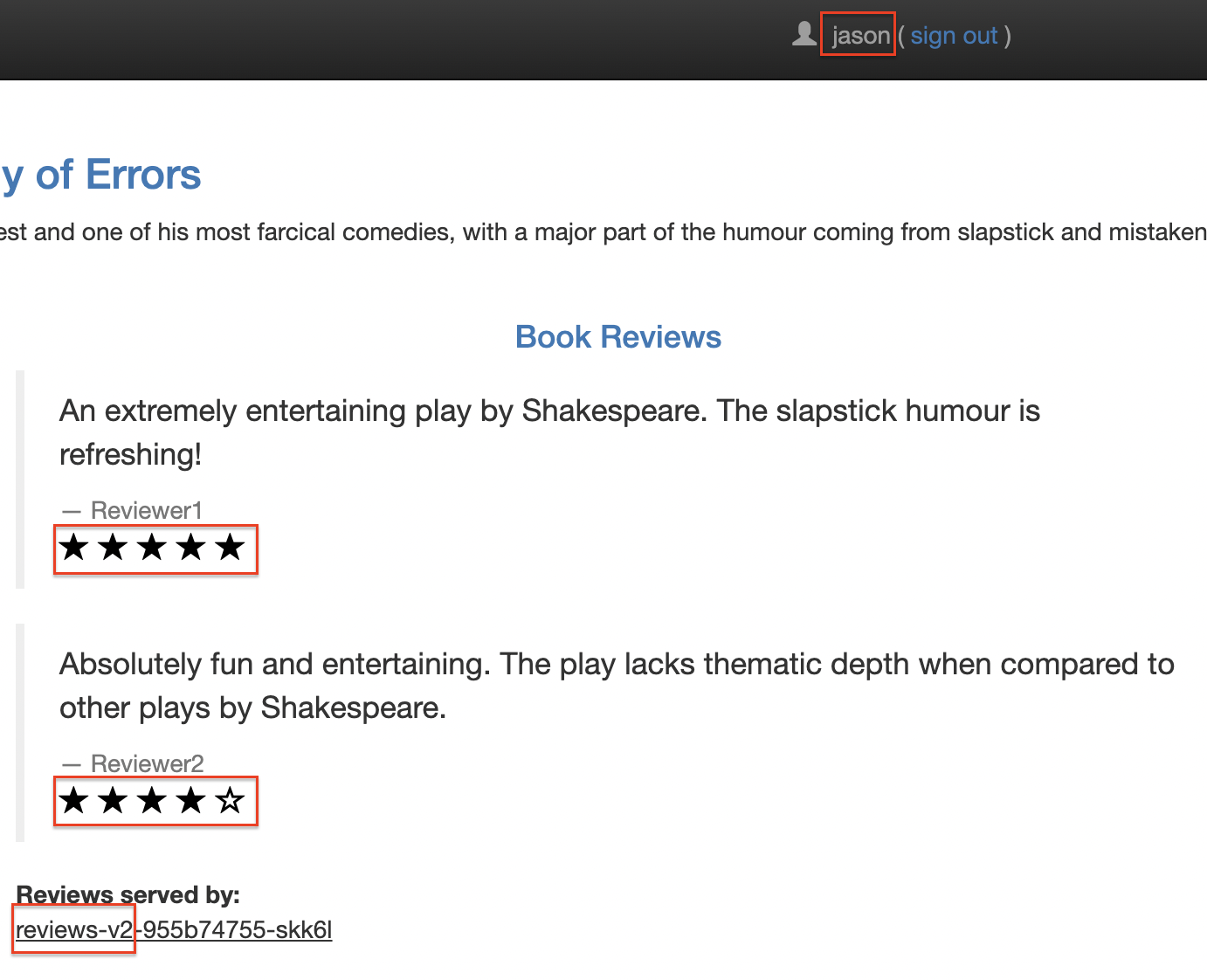

Login to jason:

What's done?

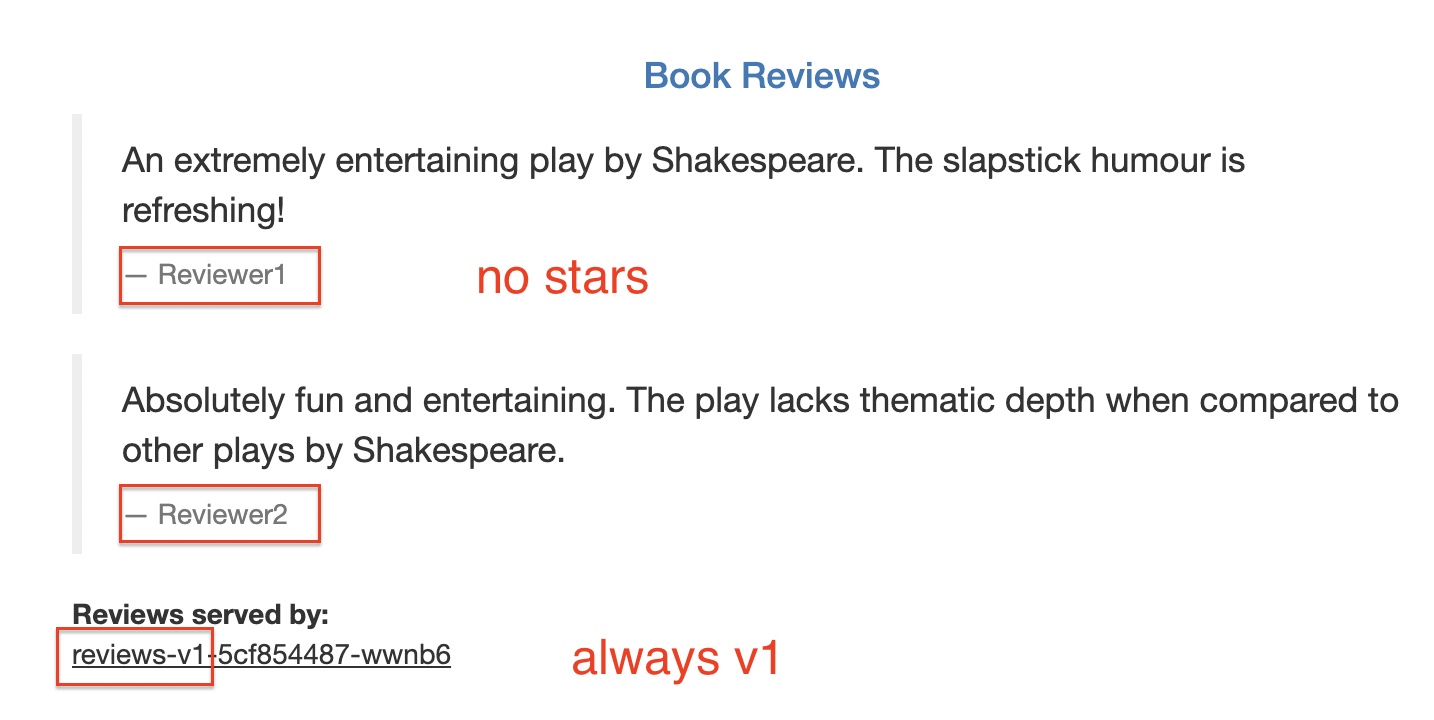

In this task, you used Istio to send 100% of the traffic to the v1 version of each of the Bookinfo services. You then set a rule to selectively send traffic to version v2 of the reviews service based on a custom end-user header added to the request by the productpage service.

3.8. View the dashboard

1. Install kiali dashboard

   for f in https://raw.githubusercontent.com/istio/istio/release-${ISTIO_VERSION%.*}/samples/addons/{grafana,jaeger,kiali,loki,prometheus}.yaml; do kubectl apply -f $f; done
   kubectl rollout status deployment/kiali -n istio-system


2. Open dashboard

   istioctl dashboard kiali

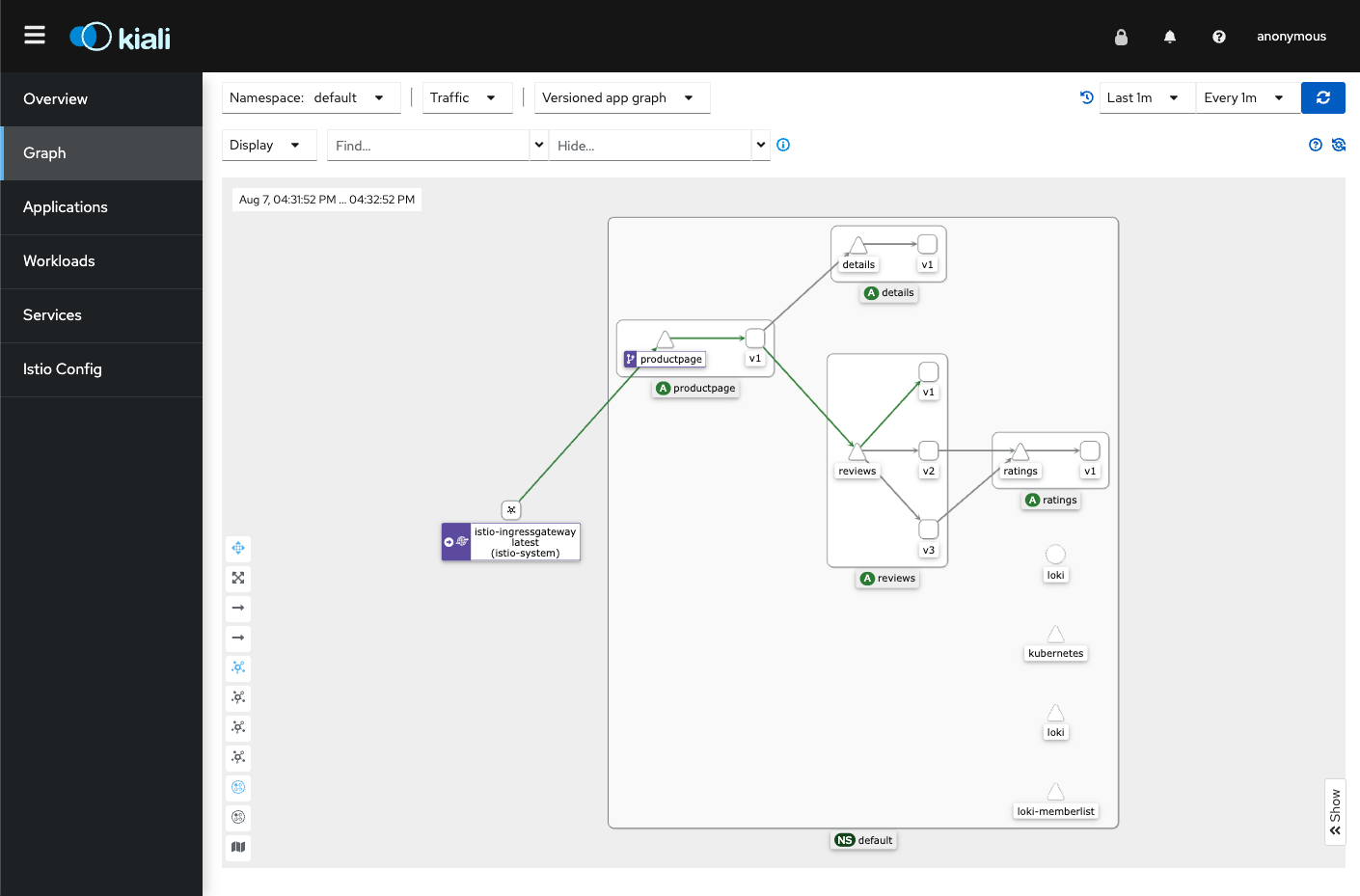

   The traffic is visualized in the graph.



4. Cleanup

istioctl uninstall --purge

for f in https://raw.githubusercontent.com/istio/istio/release-${ISTIO_VERSION%.*}/samples/addons/{grafana,jaeger,kiali,loki,prometheus}.yaml; do kubectl delete -f $f; done # delete kilia
kubectl delete -f https://raw.githubusercontent.com/istio/istio/release-${ISTIO_VERSION%.*}/samples/bookinfo/networking/bookinfo-gateway.yaml # delete gateway
kubectl delete -f kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-${ISTIO_VERSION%.*}/samples/bookinfo/platform/kube/bookinfo.yaml # delete application
istioctl manifest generate --set profile=demo | kubectl delete --ignore-not-found=true -f - # delete istio
istioctl tag remove default

kubectl delete namespace istio-system
kubectl label namespace default istio-injection-

5. More

1. Ingress
2. Ingress Gateway

5. FAQ

1. Istio APIs vs Gateway APIs

7. Experiment

7.1. Deploy Gateway and VirtualService in different namespaces

Delete gateway and virtual service:

kubectl delete -f https://raw.githubusercontent.com/istio/istio/release-${ISTIO_VERSION%.*}/samples/bookinfo/networking/bookinfo-gateway.yaml

Create a namespace for gateway

kubectl create ns gateway

Create productpage-v2

kubectl deploy -f productpage-v2.yaml

Gateway and multiple VirtualServices

bookinfo-gateway.yaml: Gateway and VirtualService (one for Gateway)

kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: bookinfo-gateway
  namespace: gateway
spec:
  # The selector matches the ingress gateway pod labels.
  # If you installed Istio using Helm following the standard documentation, this would be "istio=ingress"
  selector:
    istio: ingressgateway # use istio default controller
  servers:
  - port:
      number: 8080
      name: http
      protocol: HTTP
    hosts:
    - "*"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: bookinfo
  namespace: gateway
spec:
  hosts:
  - "*"
  gateways:
  - bookinfo-gateway # <namespace of gateway>/<gateway name>
  http:
  - match:
    - uri:
        exact: /productpage
    - uri:
        prefix: /static
    route:
    - destination:
        host: productpage.default.svc.cluster.local
        port:
          number: 9080
  - match:
    - uri:
        exact: /login
    - uri:
        exact: /logout
    - uri:
        prefix: /api/v1/products
    route:
    - destination:
        host: productpage-v2.default.svc.cluster.local
        port:
          number: 9080
EOF

You can check /api/v1/products is routed to productpage-v2, while /productpage is routed to productpage-v1.

Clean up the resources:

kubectl delete gateway -n gateway bookinfo-gateway
kubectl delete virtualservice -n gateway bookinfo

7.2. Gateway with Multiple VirtualServices

If you have mulitple VirtualService for the same host, the one corresponding to Gateway will be used. here

kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: bookinfo-gateway
  namespace: gateway
spec:
  # The selector matches the ingress gateway pod labels.
  # If you installed Istio using Helm following the standard documentation, this would be "istio=ingress"
  selector:
    istio: ingressgateway # use istio default controller
  servers:
  - port:
      number: 8080
      name: http
      protocol: HTTP
    hosts:
    - "*"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: bookinfo
  namespace: gateway
spec:
  hosts:
  - "*"
  gateways:
  - bookinfo-gateway # <namespace of gateway>/<gateway name>
  http:
  - route:
    - destination:
        host: productpage.default.svc.cluster.local
        port:
          number: 9080
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: productpage
spec:
  hosts:
  - productpage
  http:
  - match:
    - uri:
        exact: /productpage
    - uri:
        prefix: /static
    route:
    - destination:
        host: productpage
        port:
          number: 9080
  - match:
    - uri:
        exact: /login
    - uri:
        exact: /logout
    - uri:
        prefix: /api/v1/products
    route:
    - destination:
        host: productpage-v2
        port:
          number: 9080
EOF

Result:

• All the requests via gateway are routed to productpage service.
  • http://localhost/productpage
  • http://localhost/api/v1/products

• If you access productpage service directly, the routing is based on productpage VirtualService. (it seems that all the requests are routed to productpage not productpage-v2?)

  • http://productpage.default.svc.cluster.local/productpage
  • http://productpage.default.svc.cluster.local/api/v1/products

  for p in productpage api/v1/products; do kubectl run -i --tty --rm debug --image=curlimages/curl:latest --restart=Never --overrides='{"apiVersion": "v1","metadata": {"annotations": {"sidecar.istio.io/inject": "false"}}}' -- http://productpage.default.svc.cluster.local:9080/$p; done


6. Ref

1. How to install kind and istio ingress controller
2. Official
   1. Istio operator code overview
   2. Istio Operator
3. ConflictingMeshGatewayVirtualServiceHosts: We can use exportTo to specify the target namespace.
4. Route rules have no effect on ingress gateway requests The ingress requests are using the gateway host (e.g., myapp.com) which will activate the rules in the myapp VirtualService that routes to any endpoint of the helloworld service. Only internal requests with the host helloworld.default.svc.cluster.local will use the helloworld VirtualService which directs traffic exclusively to subset v1.
5. Split large virtual services and destination rules into multiple resources
6. #45332 Istio virtual service multiple services with the same host
7. Introducing istiod: simplifying the control plane
8. Relationship between the CLI and controller: The CLI and controller share the same API and codebase for generating manifests from the API. You can think of the controller as the CLI command istioctl install running in a loop in a pod in the cluster and using the config from the in-cluster IstioOperator custom resource (CR).
