Setup

https://strimzi.io/quickstarts/

Versions

https://strimzi.io/docs/operators/in-development/full/deploying.html#ref-kafka-versions-str

Kafka version	InterBroker protocol version	Log message format version	ZooKeeper version
2.7.0	2.7	2.7	3.5.8
2.7.1	2.7	2.7	3.5.9
2.8.0	2.8	2.8	3.5.9

Prepare new Strimzi version

Download strimzi-x.xx.x.zip from https://github.com/strimzi/strimzi-kafka-operator/releases

1. Put it under cluster-operator/base and unzip. (exclude docs)
2. Create cluster-operator/base/strimzi-x.xx.x/kustomization.yaml.
3. Create cluster-operator/overlays/<younamespace>.
4. Add rolebinding + clusterrolebinding to overwrite namespace.

   sed -i 's/namespace: .*/namespace: <yournamespace>/' cluster-operator/overlays/<yournamespace>/cluster-operator/*RoleBinding*.yaml


Strimzi Operator

prepare strimzi operator

• namespace: kafka

kubectl apply -f namespace.yaml
kubectl apply -k cluster-operator/overlays/kafka

kubectl get po -n kafka
NAME                                       READY   STATUS    RESTARTS   AGE
strimzi-cluster-operator-6948f4dc6-br56b   1/1     Running   0          2m51s

Kafka Cluster, KafkaTopic, and KafkaUser

• cluster name: my-cluster
• namespace: kafka

kubectl apply -k kafka-cluster

1. namespace=kafka 1. Check Kafka cluster

```
NAME                                         READY   STATUS    RESTARTS   AGE
my-cluster-entity-operator-b74545ccb-2rww6   3/3     Running   0          74s
my-cluster-kafka-0                           1/1     Running   0          109s
my-cluster-kafka-1                           1/1     Running   0          109s
my-cluster-kafka-2                           1/1     Running   0          109s
my-cluster-zookeeper-0                       1/1     Running   0          2m13s
strimzi-cluster-operator-6948f4dc6-br56b     1/1     Running   0          8m45s
```

1. KafkaTopic

   Example: https://github.com/strimzi/strimzi-kafka-operator/blob/master/examples/topic/kafka-topic.yaml

   kubectl get KafkaTopic -n $namespace
   NAME                                                                                               CLUSTER      PARTITIONS   REPLICATION FACTOR   READY
   consumer-offsets---84e7a678d08f4bd226872e5cdd4eb527fadc1c6a                                        my-cluster   50           1                    True
   my-topic                                                                                           my-cluster   1            1                    True
   strimzi-store-topic---effb8e3e057afce1ecf67c3f5d8e4e3ff177fc55                                     my-cluster   1            3                    True
   strimzi-topic-operator-kstreams-topic-store-changelog---b75e702040b99be8a9263134de3507fc0cc4017b   my-cluster   1            1                    True


2. KafkaUser

   Example: https://github.com/strimzi/strimzi-kafka-operator/blob/master/examples/user/kafka-user.yaml

   kubectl get KafkaUser -n $namespace
   No resources found in kafka namespace.


Test with console-producer & console-consumer

1. Set namespace=kafka

2. producer:

   kubectl -n $namespace run kafka-producer -ti --image=quay.io/strimzi/kafka:0.24.0-kafka-2.8.0 --rm=true --restart=Never -- bin/kafka-console-producer.sh --broker-list my-cluster-kafka-bootstrap:9092 --topic my-topic
   If you don't see a command prompt, try pressing enter.
   >test
   >test2
   >^Cpod "kafka-producer" deleted
   pod kafka/kafka-producer terminated (Error)


3. consumer:

   kubectl -n $namespace run kafka-consumer -ti --image=quay.io/strimzi/kafka:0.24.0-kafka-2.8.0 --rm=true --restart=Never -- bin/kafka-console-consumer.sh --bootstrap-server my-cluster-kafka-bootstrap:9092 --topic my-topic --from-beginning
   If you don't see a command prompt, try pressing enter.
   test
   test2
   ^CProcessed a total of 3 messages
   pod "kafka-consumer" deleted
   pod kafka/kafka-consumer terminated (Error)


KafkaConnect

https://strimzi.io/docs/0.16.2/full.html#deploying-kafka-connect-str

  annotations:
    strimzi.io/use-connector-resources: "true" # to enable connector resource

file source connector

overlays/kafka-strimzi-18/connect/source/connect-source.yaml
verlays/kafka-strimzi-18/connect/source/my-source-connector.yaml

kubectl get KafkaConnect
NAME                   DESIRED REPLICAS
kafka-connect-source   2

kubectl get KafkaConnector
NAME                  AGE
my-source-connector   9m2s

Check the message

kubectl run kafka-consumer -ti --image=strimzi/kafka:0.18.0-kafka-2.5.0 --rm=true --restart=Never -- bin/kafka-console-consumer.sh --bootstrap-server my-cluster-kafka-bootstrap:9092 --topic my-topic --from-beginning

If you don't see a command prompt, try pressing enter.
OpenJDK 64-Bit Server VM warning: If the number of processors is expected to increase from one, then you should configure the number of parallel GC threads appropriately using -XX:ParallelGCThreads=N
""
"                                 Apache License"
"                           Version 2.0, January 2004"
"                        http://www.apache.org/licenses/"
""
"   TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION"
""
...

kubectl run kafka-consumer -ti --image=strimzi/kafka:0.18.0-kafka-2.5.0 --rm=true --restart=Never -- bin/kafka-console-consumer.sh --bootstrap-server my-cluster-kafka-bootstrap:9092 --topic twitter --from-beginning
{"schema":{"type":"struct","fields":[{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"created_at"},{"type":"struct","fields":[{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"name"},{"type":"string","optional":true,"field":"screen_name"},{"type":"string","optional":true,"field":"location"},{"type":"boolean","optional":false,"field":"verified"},{"type":"int32","optional":false,"field":"friends_count"},{"type":"int32","optional":false,"field":"followers_count"},{"type":"int32","optional":false,"field":"statuses_count"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.User","field":"user"},{"type":"string","optional":true,"field":"text"},{"type":"string","optional":true,"field":"lang"},{"type":"boolean","optional":false,"field":"is_retweet"},{"type":"struct","fields":[{"type":"array","items":{"type":"struct","fields":[{"type":"string","optional":true,"field":"text"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Hashtag"},"optional":true,"field":"hashtags"},{"type":"array","items":{"type":"struct","fields":[{"type":"string","optional":true,"field":"display_url"},{"type":"string","optional":true,"field":"expanded_url"},{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"type"},{"type":"string","optional":true,"field":"url"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Medium"},"optional":true,"field":"media"},{"type":"array","items":{"type":"struct","fields":[{"type":"string","optional":true,"field":"display_url"},{"type":"string","optional":true,"field":"expanded_url"},{"type":"string","optional":true,"field":"url"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Url"},"optional":true,"field":"urls"},{"type":"array","items":{"type":"struct","fields":[{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"name"},{"type":"string","optional":true,"field":"screen_name"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.UserMention"},"optional":true,"field":"user_mentions"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Entities","field":"entities"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Tweet"},"payload":{"id":1290101985916592128,"created_at":"2020-08-03T01:47:37.000+0000","user":{"id":2901232483,"name":"Keryi\uD83E\uDD8B","screen_name":"keryikeryi","location":"Seattle, WA","verified":false,"friends_count":153,"followers_count":222,"statuses_count":13157},"text":"RT @LilNasX: corona is that nigga who already graduated but won’t stop coming up to the school","lang":"en","is_retweet":true,"entities":{"hashtags":[],"media":[],"urls":[],"user_mentions":[{"id":754006735468261376,"name":"nope","screen_name":"LilNasX"}]}}}
^CProcessed a total of 1056 messages

• https://docs.confluent.io/current/connect/kafka-connect-elasticsearch/configuration_options.html

Enable the Cluster Operator to watch multiple namespaces

https://strimzi.io/docs/0.16.2/full.html#deploying-cluster-operator-to-watch-multiple-namespacesstr

Change STRIMZI_NAMESPACE

TO update STRIMZI_NAMESPACE, add a patch yaml and include it in kustomization.yaml in kafka-strimzi-18 (Reference: Kustomize でマニフェストのフィールドを削除する)

apiVersion: apps/v1
kind: Deployment
metadata:
  name: strimzi-cluster-operator
spec:
  template:
    spec:
      serviceAccountName: strimzi-cluster-operator
      containers:
      - name: strimzi-cluster-operator
        env:
        - name: STRIMZI_NAMESPACE
          value: kafka-strimzi-18,kafka-strimzi-18-staging
          valueFrom: null

Diff

kubectl diff -k overlays/kafka-strimzi-18
-  generation: 1
+  generation: 2
   labels:
     app: strimzi
   name: strimzi-cluster-operator
@@ -36,10 +36,7 @@
         - /opt/strimzi/bin/cluster_operator_run.sh
         env:
         - name: STRIMZI_NAMESPACE
-          valueFrom:
-            fieldRef:
-              apiVersion: v1
-              fieldPath: metadata.namespace
+          value: kafka-strimzi-18,kafka-strimzi-18-staging
         - name: STRIMZI_FULL_RECONCILIATION_INTERVAL_MS

Apply

kubectl apply -k overlays/kafka-strimzi-18
customresourcedefinition.apiextensions.k8s.io/kafkabridges.kafka.strimzi.io unchanged
customresourcedefinition.apiextensions.k8s.io/kafkaconnectors.kafka.strimzi.io unchanged
customresourcedefinition.apiextensions.k8s.io/kafkaconnects.kafka.strimzi.io unchanged
customresourcedefinition.apiextensions.k8s.io/kafkaconnects2is.kafka.strimzi.io unchanged
customresourcedefinition.apiextensions.k8s.io/kafkamirrormaker2s.kafka.strimzi.io unchanged
customresourcedefinition.apiextensions.k8s.io/kafkamirrormakers.kafka.strimzi.io unchanged
customresourcedefinition.apiextensions.k8s.io/kafkarebalances.kafka.strimzi.io unchanged
customresourcedefinition.apiextensions.k8s.io/kafkas.kafka.strimzi.io unchanged
customresourcedefinition.apiextensions.k8s.io/kafkatopics.kafka.strimzi.io unchanged
customresourcedefinition.apiextensions.k8s.io/kafkausers.kafka.strimzi.io unchanged
serviceaccount/strimzi-cluster-operator unchanged
clusterrole.rbac.authorization.k8s.io/strimzi-cluster-operator-global unchanged
clusterrole.rbac.authorization.k8s.io/strimzi-cluster-operator-namespaced unchanged
clusterrole.rbac.authorization.k8s.io/strimzi-entity-operator unchanged
clusterrole.rbac.authorization.k8s.io/strimzi-kafka-broker unchanged
clusterrole.rbac.authorization.k8s.io/strimzi-topic-operator unchanged
rolebinding.rbac.authorization.k8s.io/strimzi-cluster-operator-entity-operator-delegation unchanged
rolebinding.rbac.authorization.k8s.io/strimzi-cluster-operator-topic-operator-delegation unchanged
rolebinding.rbac.authorization.k8s.io/strimzi-cluster-operator unchanged
clusterrolebinding.rbac.authorization.k8s.io/strimzi-cluster-operator-kafka-broker-delegation unchanged
clusterrolebinding.rbac.authorization.k8s.io/strimzi-cluster-operator unchanged
deployment.apps/strimzi-cluster-operator configured
kafka.kafka.strimzi.io/my-cluster unchanged

RoleBinding & ClusterRoleBinding

Copy RoleBinding from kafka-strimzi-18

mkdir -p overlays/kafka-strimzi-18-staging/strimzi-0.18.0/install/cluster-operator
cp overlays/kafka-strimzi-18/strimzi-0.18.0/install/cluster-operator/*-RoleBinding*yaml overlays/kafka-strimzi-18-staging/strimzi-0.18.0/install/cluster-operator

Apply

kubectl apply -k overlays/kafka-strimzi-18-staging
rolebinding.rbac.authorization.k8s.io/strimzi-cluster-operator-entity-operator-delegation created
rolebinding.rbac.authorization.k8s.io/strimzi-cluster-operator-topic-operator-delegation created
rolebinding.rbac.authorization.k8s.io/strimzi-cluster-operator created

Kafka Cluster

Prepare my-cluster.yaml and add it to kustomization.yaml

cp overlays/kafka-strimzi-18/my-cluster.yaml overlays/kafka-strimzi-18-staging

Apply

kubectl apply -k overlays/kafka-strimzi-18-staging
rolebinding.rbac.authorization.k8s.io/strimzi-cluster-operator-entity-operator-delegation unchanged
rolebinding.rbac.authorization.k8s.io/strimzi-cluster-operator-topic-operator-delegation unchanged
rolebinding.rbac.authorization.k8s.io/strimzi-cluster-operator unchanged
kafka.kafka.strimzi.io/my-cluster created

Check

kubectl get pod -n $namespace-staging
NAME                                         READY   STATUS    RESTARTS   AGE
my-cluster-entity-operator-fd45b849f-9vk62   3/3     Running   0          59s
my-cluster-kafka-0                           2/2     Running   0          2m23s
my-cluster-zookeeper-0                       1/1     Running   0          3m19s

Kafka MirrorMaker

https://strimzi.io/docs/operators/master/using.html#assembly-deployment-configuration-kafka-mirror-maker-str

Prerequisite:

• Run multiple clusters

kubectl apply -k strimzi/overlays/kafka-strimzi-18-staging

kubectl get KafkaTopic -n kafka-strimzi-18-staging
NAME                                                          PARTITIONS   REPLICATION FACTOR
consumer-offsets---84e7a678d08f4bd226872e5cdd4eb527fadc1c6a   50           1
heartbeats                                                    1            1
mirrormaker2-cluster-configs                                  1            1
mirrormaker2-cluster-offsets                                  25           1
mirrormaker2-cluster-status                                   5            1
my-cluster-source.checkpoints.internal                        1            1
my-cluster-source.kafka-connect-sink-config                   1            1
my-cluster-source.kafka-connect-sink-offset                   25           1
my-cluster-source.kafka-connect-sink-status                   5            1
my-cluster-source.kafka-connect-source-config                 1            1
my-cluster-source.kafka-connect-source-offset                 25           1
my-cluster-source.kafka-connect-source-status                 5            1
my-cluster-source.my-topic                                    1            1
my-cluster-source.twitter                                     1            1

check

kubectl -n kafka-strimzi-18-staging run kafka-consumer -ti --image=strimzi/kafka:0.18.0-kafka-2.5.0 --rm=true --restart=Never -- bin/kafka-console-consumer.sh --bootstrap-server my-cluster-kafka-bootstrap:9092 --topic my-cluster-source.twitter

If you don't see a command prompt, try pressing enter.
{"schema":{"type":"struct","fields":[{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"created_at"},{"type":"struct","fields":[{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"name"},{"type":"string","optional":true,"field":"screen_name"},{"type":"string","optional":true,"field":"location"},{"type":"boolean","optional":false,"field":"verified"},{"type":"int32","optional":false,"field":"friends_count"},{"type":"int32","optional":false,"field":"followers_count"},{"type":"int32","optional":false,"field":"statuses_count"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.User","field":"user"},{"type":"string","optional":true,"field":"text"},{"type":"string","optional":true,"field":"lang"},{"type":"boolean","optional":false,"field":"is_retweet"},{"type":"struct","fields":[{"type":"array","items":{"type":"struct","fields":[{"type":"string","optional":true,"field":"text"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Hashtag"},"optional":true,"field":"hashtags"},{"type":"array","items":{"type":"struct","fields":[{"type":"string","optional":true,"field":"display_url"},{"type":"string","optional":true,"field":"expanded_url"},{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"type"},{"type":"string","optional":true,"field":"url"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Medium"},"optional":true,"field":"media"},{"type":"array","items":{"type":"struct","fields":[{"type":"string","optional":true,"field":"display_url"},{"type":"string","optional":true,"field":"expanded_url"},{"type":"string","optional":true,"field":"url"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Url"},"optional":true,"field":"urls"},{"type":"array","items":{"type":"struct","fields":[{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"name"},{"type":"string","optional":true,"field":"screen_name"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.UserMention"},"optional":true,"field":"user_mentions"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Entities","field":"entities"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Tweet"},"payload":{"id":1293333835531329545,"created_at":"2020-08-11T23:49:50.000+0000","user":{"id":1129412194779766784,"name":"Mizibak \uD83C\uDDEC\uD83C\uDDE7","screen_name":"mizibak","location":null,"verified":false,"friends_count":1022,"followers_count":675,"statuses_count":25644},"text":"RT @NeuroNerd78: Take a strain of viruses that are abundant,Corona for example,say a new one has emerged, give it a name,apply a list of sy…","lang":"en","is_retweet":true,"entities":{"hashtags":[],"media":[],"urls":[],"user_mentions":[{"id":1182033581755031552,"name":"Angie \uD83D\uDC1DOverlord of the Wasps\uD83D\uDC1D","screen_name":"NeuroNerd78"}]}}}
{"schema":{"type":"struct","fields":[{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"created_at"},{"type":"struct","fields":[{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"name"},{"type":"string","optional":true,"field":"screen_name"},{"type":"string","optional":true,"field":"location"},{"type":"boolean","optional":false,"field":"verified"},{"type":"int32","optional":false,"field":"friends_count"},{"type":"int32","optional":false,"field":"followers_count"},{"type":"int32","optional":false,"field":"statuses_count"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.User","field":"user"},{"type":"string","optional":true,"field":"text"},{"type":"string","optional":true,"field":"lang"},{"type":"boolean","optional":false,"field":"is_retweet"},{"type":"struct","fields":[{"type":"array","items":{"type":"struct","fields":[{"type":"string","optional":true,"field":"text"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Hashtag"},"optional":true,"field":"hashtags"},{"type":"array","items":{"type":"struct","fields":[{"type":"string","optional":true,"field":"display_url"},{"type":"string","optional":true,"field":"expanded_url"},{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"type"},{"type":"string","optional":true,"field":"url"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Medium"},"optional":true,"field":"media"},{"type":"array","items":{"type":"struct","fields":[{"type":"string","optional":true,"field":"display_url"},{"type":"string","optional":true,"field":"expanded_url"},{"type":"string","optional":true,"field":"url"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Url"},"optional":true,"field":"urls"},{"type":"array","items":{"type":"struct","fields":[{"type":"int64","optional":false,"field":"id"},{"type":"string","optional":true,"field":"name"},{"type":"string","optional":true,"field":"screen_name"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.UserMention"},"optional":true,"field":"user_mentions"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Entities","field":"entities"}],"optional":false,"name":"com.eneco.trading.kafka.connect.twitter.Tweet"},"payload":{"id":1293333835531329545,"created_at":"2020-08-11T23:49:50.000+0000","user":{"id":1129412194779766784,"name":"Mizibak \uD83C\uDDEC\uD83C\uDDE7","screen_name":"mizibak","location":null,"verified":false,"friends_count":1022,"followers_count":675,"statuses_count":25644},"text":"RT @NeuroNerd78: Take a strain of viruses that are abundant,Corona for example,say a new one has emerged, give it a name,apply a list of sy…","lang":"en","is_retweet":true,"entities":{"hashtags":[],"media":[],"urls":[],"user_mentions":[{"id":1182033581755031552,"name":"Angie \uD83D\uDC1DOverlord of the Wasps\uD83D\uDC1D","screen_name":"NeuroNerd78"}]}}}
^CProcessed a total of 2 messages
pod "kafka-consumer" deleted
pod kafka-strimzi-18-staging/kafka-consumer terminated (Error)

Monitoring

• KafkaExporter in Kafka -> kafka-exporter-configuration
• metrics in kafka and zookeeper container -> kafka-metrics.yaml
• Deploying the CoreOS Prometheus Operator

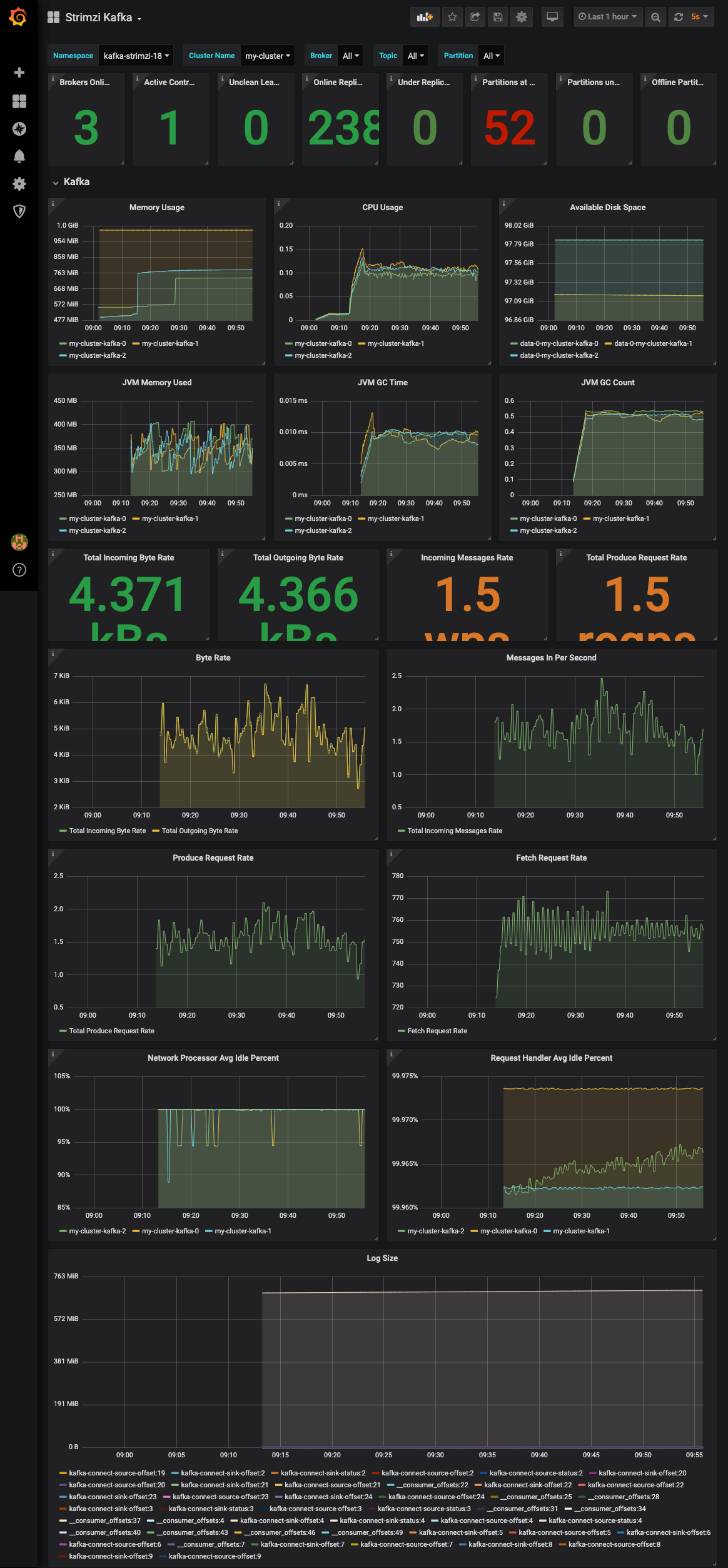

• Grafana Dashboards: cluster-operator/base/strimzi-0.24.0/examples/metrics/grafana-dashboards

Prometheus

1. Deploy operator

   git clone https://github.com/coreos/kube-prometheus && cd kube-prometheus
   kubectl apply -f manifests/setup


2. Deploy resources

   kubectl apply -f manifests


   <!-- Prometheus (the namespace Prometheus is going to be installed into)

   curl -s https://raw.githubusercontent.com/strimzi/strimzi-kafka-operator/master/examples/metrics/prometheus-install/prometheus.yaml | sed 's/namespace: .*/namespace: monitoring/' > strimzi/monitoring/prometheus.yaml -->

3. Deploy PodMonitor

   Update namespace with the one where the pods to scrape the metrics from are running

   curl -s https://raw.githubusercontent.com/strimzi/strimzi-kafka-operator/master/examples/metrics/prometheus-install/strimzi-pod-monitor.yaml | sed 's/myproject/kafka-strimzi-18/' > strimzi/monitoring/strimzi-pod-monitor.yaml


   kubectl apply -f strimzi/monitoring/strimzi-pod-monitor.yaml -n monitoring


4. Deploy PrometheusRule and prometheus-additonal-config (TBD)

   curl -s https://raw.githubusercontent.com/strimzi/strimzi-kafka-operator/master/examples/metrics/prometheus-install/prometheus-rules.yaml > strimzi/monitoring/prometheus-rules.yaml


   curl -s https://raw.githubusercontent.com/strimzi/strimzi-kafka-operator/master/examples/metrics/prometheus-additional-properties/prometheus-additional.yaml > strimzi/monitoring/prometheus-additional.yaml
   kubectl create secret generic additional-scrape-configs --from-file=strimzi/monitoring/prometheus-additional.yaml -n monitoring


   # kubectl apply -f strimzi/monitoring/prometheus-rules.yaml -n monitoring
   # kubectl apply -f strimzi/monitoring/prometheus.yaml -n monitoring


5. Add the podMonitorSelector to Prometheus by kubectl edit Prometheus -n monitoring

     podMonitorSelector:
       matchLabels:
         app: strimzi


6. Update service account prometheus-k8s to add the followings:

   kubectl edit clusterrole prometheus-k8s -o yaml


     - apiGroups: [""]
       resources:
         - nodes
         - nodes/proxy
         - services
         - endpoints
         - pods
       verbs: ["get", "list", "watch"]
     - apiGroups:
         - extensions
       resources:
         - ingresses
       verbs: ["get", "list", "watch"]
     - nonResourceURLs: ["/metrics"]
       verbs: ["get"]


Alertmanager (TBD)

curl -s https://raw.githubusercontent.com/strimzi/strimzi-kafka-operator/master/examples/metrics/prometheus-install/alert-manager.yaml > strimzi/monitoring/alert-manager.yaml
curl -s https://raw.githubusercontent.com/strimzi/strimzi-kafka-operator/master/examples/metrics/prometheus-alertmanager-config/alert-manager-config.yaml > strimzi/monitoring/alert-manager-config.yaml

Change slack_api_url

kubectl create secret generic alertmanager-alertmanager --from-file=alertmanager.yaml=strimzi/monitoring/alert-manager-config.yaml -n monitoring

kubectl apply -f strimzi/monitoring/alert-manager.yaml -n monitoring

Grafana

Import dashoboard

Authentication & Authorization

Listerner authentication

• Mutual TLS authentication
  • The client supports authenticaton using mutual TLS authentication
  • It is necessary to ue the TLS certificates rather than passwords
  • You can reconfigure and restart client applications periodically so that they do not use expired certificates
• SCRAM-SHA(Salted Challenge Response Authenticatoin Mechanism) authentication
  • Support SCRAM-SHA-512 only.
  • The client supports authentication using SCRAM-SHA-512
  • It is necessary to use passwords rather than the TLS certificates
  • Authentication for unencrypted communication is required
• no authentication property -> not authenticate

debug

KafkaConnector fails to join group

2020-08-02 02:54:06,347 INFO [Worker clientId=connect-1, groupId=kafka-connect-source] Join group failed with org.apache.kafka.common.errors.MemberIdRequiredException: The group member needs to have a valid member id before actually entering a consumer group (org.apache.kafka.clients.consumer.internals.AbstractCoordinator) [DistributedHerder-connect-1-1]

Connector was old.

KafkaConnector Elasticsearch fails

 "java.lang.NoClassDefFoundError: com/google/common/collect/ImmutableSet\n\tat
        io.searchbox.client.AbstractJestClient.<init>(AbstractJestClient.java:38)\n\tat
        io.searchbox.client.http.JestHttpClient.<init>(JestHttpClient.java:43)\n\tat
        io.searchbox.client.JestClientFactory.getObject(JestClientFactory.java:51)\n\tat
        io.confluent.connect.elasticsearch.jest.JestElasticsearchClient.<init>(JestElasticsearchClient.java:150)\n\tat
        io.confluent.connect.elasticsearch.jest.JestElasticsearchClient.<init>(JestElasticsearchClient.java:142)\n\tat
        io.confluent.connect.elasticsearch.ElasticsearchSinkTask.start(ElasticsearchSinkTask.java:122)\n\tat
        io.confluent.connect.elasticsearch.ElasticsearchSinkTask.start(ElasticsearchSinkTask.java:51)\n\tat
        org.apache.kafka.connect.runtime.WorkerSinkTask.initializeAndStart(WorkerSinkTask.java:305)\n\tat
        org.apache.kafka.connect.runtime.WorkerSinkTask.execute(WorkerSinkTask.java:193)\n\tat
        org.apache.kafka.connect.runtime.WorkerTask.doRun(WorkerTask.java:184)\n\tat
        org.apache.kafka.connect.runtime.WorkerTask.run(WorkerTask.java:234)\n\tat
        java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)\n\tat
        java.util.concurrent.FutureTask.run(FutureTask.java:266)\n\tat java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)\n\tat
        java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)\n\tat
        java.lang.Thread.run(Thread.java:748)\nCaused by: java.lang.ClassNotFoundException:
        com.google.common.collect.ImmutableSet\n\tat java.net.URLClassLoader.findClass(URLClassLoader.java:382)\n\tat
        java.lang.ClassLoader.loadClass(ClassLoader.java:418)\n\tat org.apache.kafka.connect.runtime.isolation.PluginClassLoader.loadClass(PluginClassLoader.java:104)\n\tat
        java.lang.ClassLoader.loadClass(ClassLoader.java:351)\n\t... 16 more\n"

Need to add gua

Kafka Connect Elasticsearch fails

org.apache.kafka.connect.errors.ConnectException: Couldn't start ElasticsearchSinkTask due to connection error:
        at io.confluent.connect.elasticsearch.jest.JestElasticsearchClient.<init>(JestElasticsearchClient.java:159)
        at io.confluent.connect.elasticsearch.jest.JestElasticsearchClient.<init>(JestElasticsearchClient.java:142)
        at io.confluent.connect.elasticsearch.ElasticsearchSinkTask.start(ElasticsearchSinkTask.java:122)
        at io.confluent.connect.elasticsearch.ElasticsearchSinkTask.start(ElasticsearchSinkTask.java:51)
        at org.apache.kafka.connect.runtime.WorkerSinkTask.initializeAndStart(WorkerSinkTask.java:305)
        at org.apache.kafka.connect.runtime.WorkerSinkTask.execute(WorkerSinkTask.java:193)
        at org.apache.kafka.connect.runtime.WorkerTask.doRun(WorkerTask.java:184)
        at org.apache.kafka.connect.runtime.WorkerTask.run(WorkerTask.java:234)
        at java.util.concurrent.Executors.call(Executors.java:511)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor.run(ThreadPoolExecutor.java:624)
        at java.lang.Thread.run(Thread.java:748)
Caused by: javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
        at sun.security.ssl.Alerts.getSSLException(Alerts.java:198)
        at sun.security.ssl.SSLSocketImpl.fatal(SSLSocketImpl.java:1967)
        at sun.security.ssl.Handshaker.fatalSE(Handshaker.java:331)
        at sun.security.ssl.Handshaker.fatalSE(Handshaker.java:325)
        at sun.security.ssl.ClientHandshaker.serverCertificate(ClientHandshaker.java:1688)
        at sun.security.ssl.ClientHandshaker.processMessage(ClientHandshaker.java:226)
        at sun.security.ssl.Handshaker.processLoop(Handshaker.java:1082)
        at sun.security.ssl.Handshaker.process_record(Handshaker.java:1010)
        at sun.security.ssl.SSLSocketImpl.readRecord(SSLSocketImpl.java:1079)
        at sun.security.ssl.SSLSocketImpl.performInitialHandshake(SSLSocketImpl.java:1388)
        at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1416)
        at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1400)
        at org.apache.http.conn.ssl.SSLConnectionSocketFactory.createLayeredSocket(SSLConnectionSocketFactory.java:396)
        at org.apache.http.conn.ssl.SSLConnectionSocketFactory.connectSocket(SSLConnectionSocketFactory.java:355)
        at org.apache.http.impl.conn.DefaultHttpClientConnectionOperator.connect(DefaultHttpClientConnectionOperator.java:142)
        at org.apache.http.impl.conn.PoolingHttpClientConnectionManager.connect(PoolingHttpClientConnectionManager.java:359)
        at org.apache.http.impl.execchain.MainClientExec.establishRoute(MainClientExec.java:381)
        at org.apache.http.impl.execchain.MainClientExec.execute(MainClientExec.java:237)
        at org.apache.http.impl.execchain.ProtocolExec.execute(ProtocolExec.java:185)
        at org.apache.http.impl.execchain.RetryExec.execute(RetryExec.java:89)
        at org.apache.http.impl.execchain.RedirectExec.execute(RedirectExec.java:111)
        at org.apache.http.impl.client.InternalHttpClient.doExecute(InternalHttpClient.java:185)
        at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:83)
        at io.searchbox.client.http.JestHttpClient.executeRequest(JestHttpClient.java:133)
        at io.searchbox.client.http.JestHttpClient.execute(JestHttpClient.java:70)
        at io.searchbox.client.http.JestHttpClient.execute(JestHttpClient.java:63)
        at io.confluent.connect.elasticsearch.jest.JestElasticsearchClient.getServerVersion(JestElasticsearchClient.java:247)
        at io.confluent.connect.elasticsearch.jest.JestElasticsearchClient.<init>(JestElasticsearchClient.java:151)
        ... 12 more
Caused by: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
        at sun.security.validator.PKIXValidator.doBuild(PKIXValidator.java:450)
        at sun.security.validator.PKIXValidator.engineValidate(PKIXValidator.java:317)
        at sun.security.validator.Validator.validate(Validator.java:262)
        at sun.security.ssl.X509TrustManagerImpl.validate(X509TrustManagerImpl.java:330)
        at sun.security.ssl.X509TrustManagerImpl.checkTrusted(X509TrustManagerImpl.java:237)
        at sun.security.ssl.X509TrustManagerImpl.checkServerTrusted(X509TrustManagerImpl.java:132)
        at sun.security.ssl.ClientHandshaker.serverCertificate(ClientHandshaker.java:1670)
        ... 35 more
Caused by: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
        at sun.security.provider.certpath.SunCertPathBuilder.build(SunCertPathBuilder.java:141)
        at sun.security.provider.certpath.SunCertPathBuilder.engineBuild(SunCertPathBuilder.java:126)
        at java.security.cert.CertPathBuilder.build(CertPathBuilder.java:280)
        at sun.security.validator.PKIXValidator.doBuild(PKIXValidator.java:445)
        ... 41 more

reference

• Custom image for KafkaConnect: https://strimzi.io/docs/operators/0.18.0/using.html#creating-new-image-from-base-str
• https://github.com/nakamasato/kafka-connect
