Prometheus

Diagram

Getting Started

Deploy Prometheus in monitoring namespace.

kubectl create ns monitoring
kubectl apply -k .

1. Check on browser.

kubectl -n monitoring port-forward svc/prometheus 9090:9090

Open http://localhost:9090

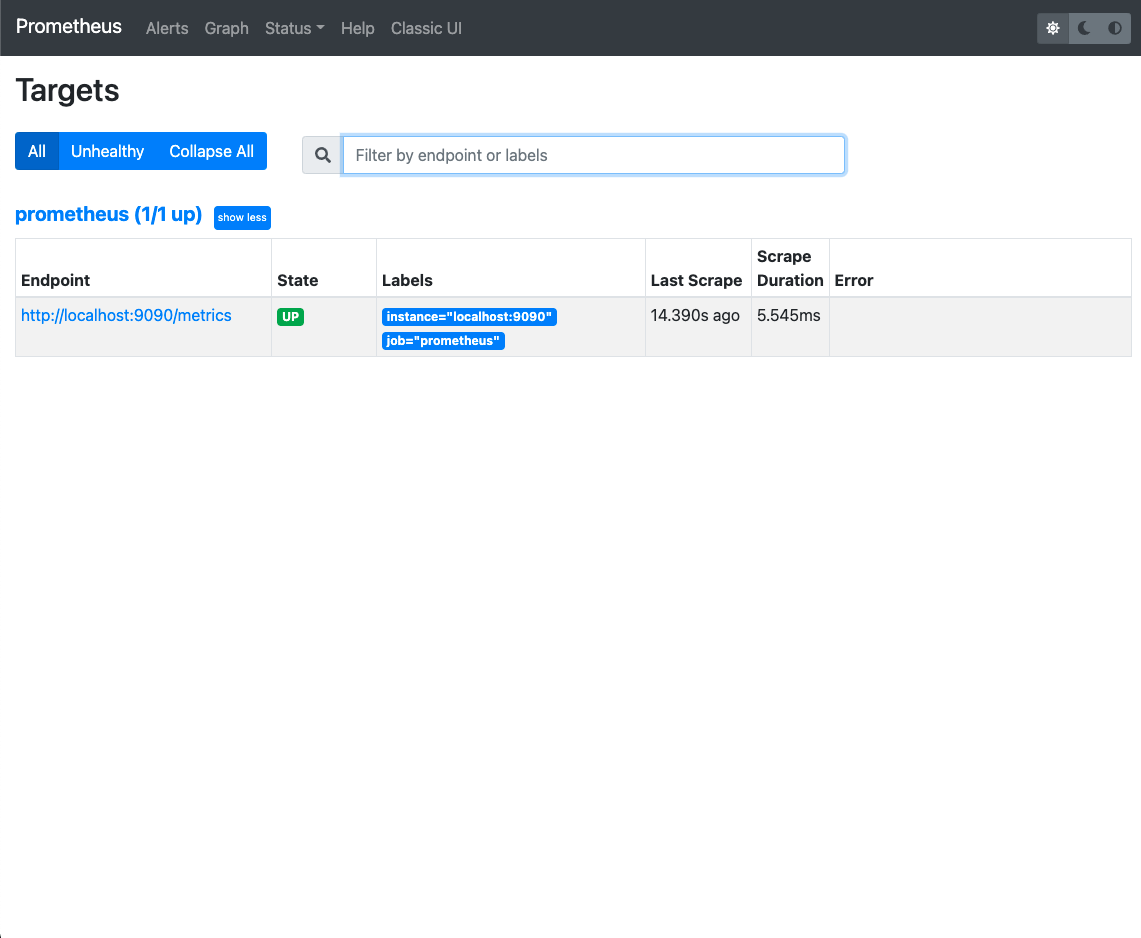

You can see prometheus (1/1 up).

This is defined in prometheus.yml

scrape_configs:
  - job_name: 'prometheus'
    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.
    static_configs:
      - targets: ['localhost:9090']

Configuration

1. Remove `scrape_config`

Update prometheus.yml with

global:
  scrape_interval:     15s
  evaluation_interval: 15s

kubectl apply -k .

※ Not updated.

Manually reload.

curl -X POST http://localhost:9090/-/reload

You'll the logs:

ts=2022-02-03T12:17:18.390Z caller=main.go:1128 level=info msg="Loading configuration file" filename=/etc/prometheus/prometheus.yml
ts=2022-02-03T12:17:18.390Z caller=main.go:1165 level=info msg="Completed loading of configuration file" filename=/etc/prometheus/prometheus.yml totalDuration=717.8µs db_storage=5.4µs remote_storage=7.2µs web_handler=5.4µs query_engine=6.1µs scrape=299.6µs scrape_sd=14.2µs notify=6.2µs notify_sd=5.8µs rules=4.7µs

※ Need to wait for a while for some reason..(why?)

Check http://localhost:9090/targets -> Targets become empty.

2. Use `kubernetes_sd_config` - `endpoints` role

Try simple role: endpoints.

- job_name: 'prometheus-endpoints-role'
  kubernetes_sd_configs:
    - role: endpoints

curl -X POST http://localhost:9090/-/reload

-> all the pods behind endpoints are scraped.

Specify namespaces.

- job_name: 'prometheus-endpoints-role'
  kubernetes_sd_configs:
    - role: endpoints
      namespaces:
        own_namespace: true
        names:
          - monitoring

curl -X POST http://localhost:9090/-/reload

-> Only pods behind endpoints in monitoring namespace are scraped.

References

prometheus
